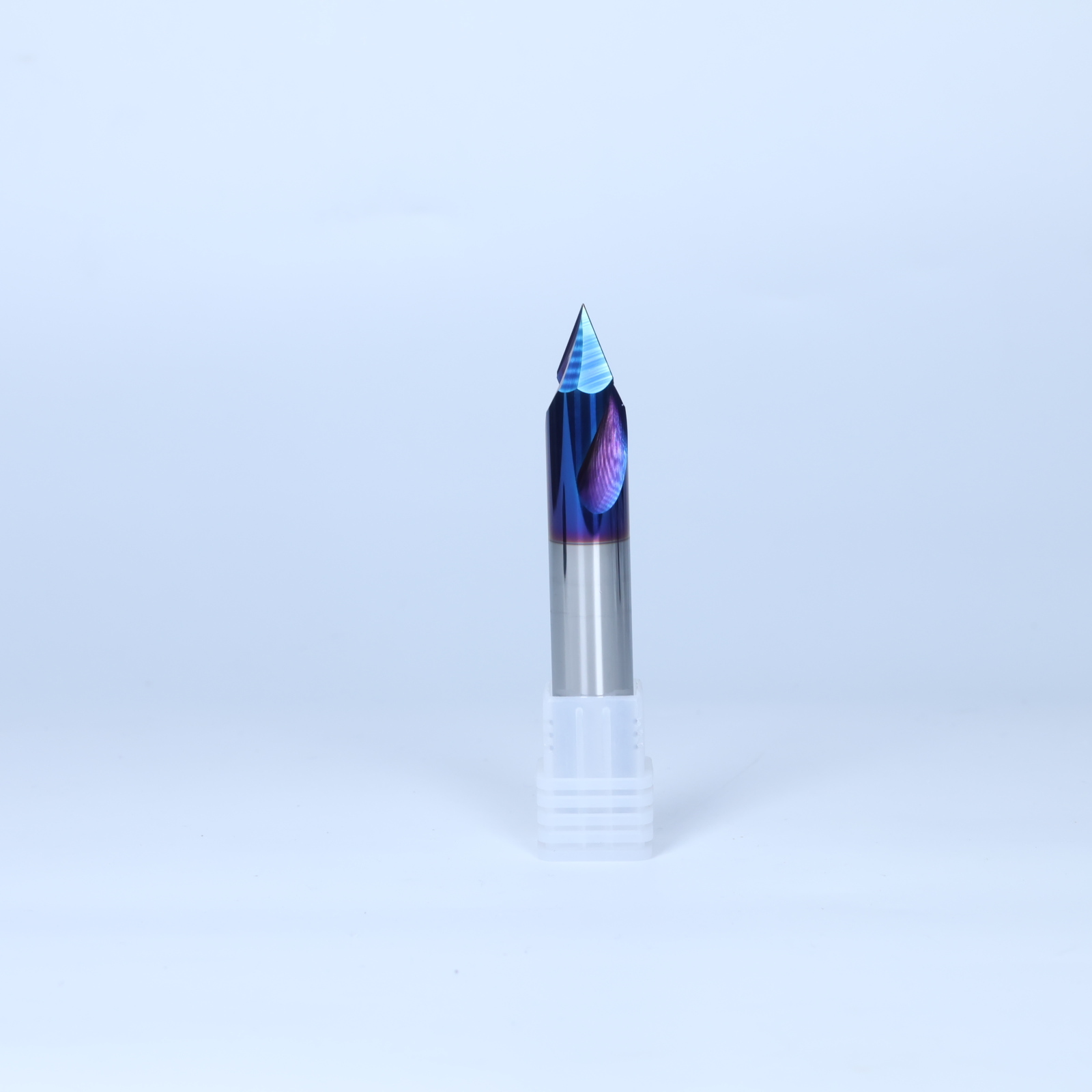

HRC65 Blue Nano Chamfering Cutter

HRC65 Blue Nano Chamfering Cutter

The advantages of high hardness, high precision, good chip removal, excellent coating and 90° design efficiently meet the needs of chamfering of various hard materials.

Send Inquiry
Description
Argument
Products Description

Product Information

Material Tungsten steel(Carbide) Coating Bronze coating
Brand Zy/Customizable Number of blades 2
Cutting hardness below 65 Screw angle 60,90,120
Applicable materials 45# steel, cast iron, tool steel, abrasive steel and other materials Applicable machines CNC machining centers,precision engraving machines, precision engraving machines and other high speed equipment

Feature Description

  1. Fully ground cutting edge for longer life and sharp and smooth cutting.
  2. Fully ground helical angle for smooth chip removal to avoid chip accumulation and sticking to the knife.
  3. Sandblasting passivation for more durability.

serial NO. Specifications

(D1*D2*L1*A)

serial NO. Specifications

(D1*D2*L1*A)

serial NO. Specifications

(D1*D2*L1*A)

1 D1*D4*50*90° 14 D6*D6*75*90° 27 D20*D20*100*90°
2 D1.5*D4*50*90° 15 D8*D8*75*90° 28 D4*D4*50*60°
3 D2*D4*50*90° 16 D10*D10*75*90° 29 D6*D6*50*60°
4 D2.5*D4*50*90° 17 D12*D12*75*90° 30 D8*D8*60*60°
5 D3*D4*50*90° 18 D3*D3*100*90° 31 D10*D10*75*60°
6 D3*D3*50*90° 19 D4*D4*100*90° 32 D12*D12*75*60°
7 D4*D4*50*90° 20 D5*D5*100*90° 33 D4*D4*50*120°
8 D5*D5*50*90° 21 D6*D6*100*90° 34 D6*D6*50*120°
9 D6*D6*50*90° 22 D8*D8*100*90° 35 D8*D8*60*120°
10 D8*D8*60*90° 23 D10*D10*100*90° 36 D10*D10*75*120°
11 D3*D3*75*90° 24 D12*D12*100*90° 37 D12*D12*75*120°
12 D3*D3*75*90° 25 D14*D14*100*90° 38
13 D5*D5*75*90° 26 D16*D16*100*90° 39
Other specifications can be customized



Tags:

Technical parameter

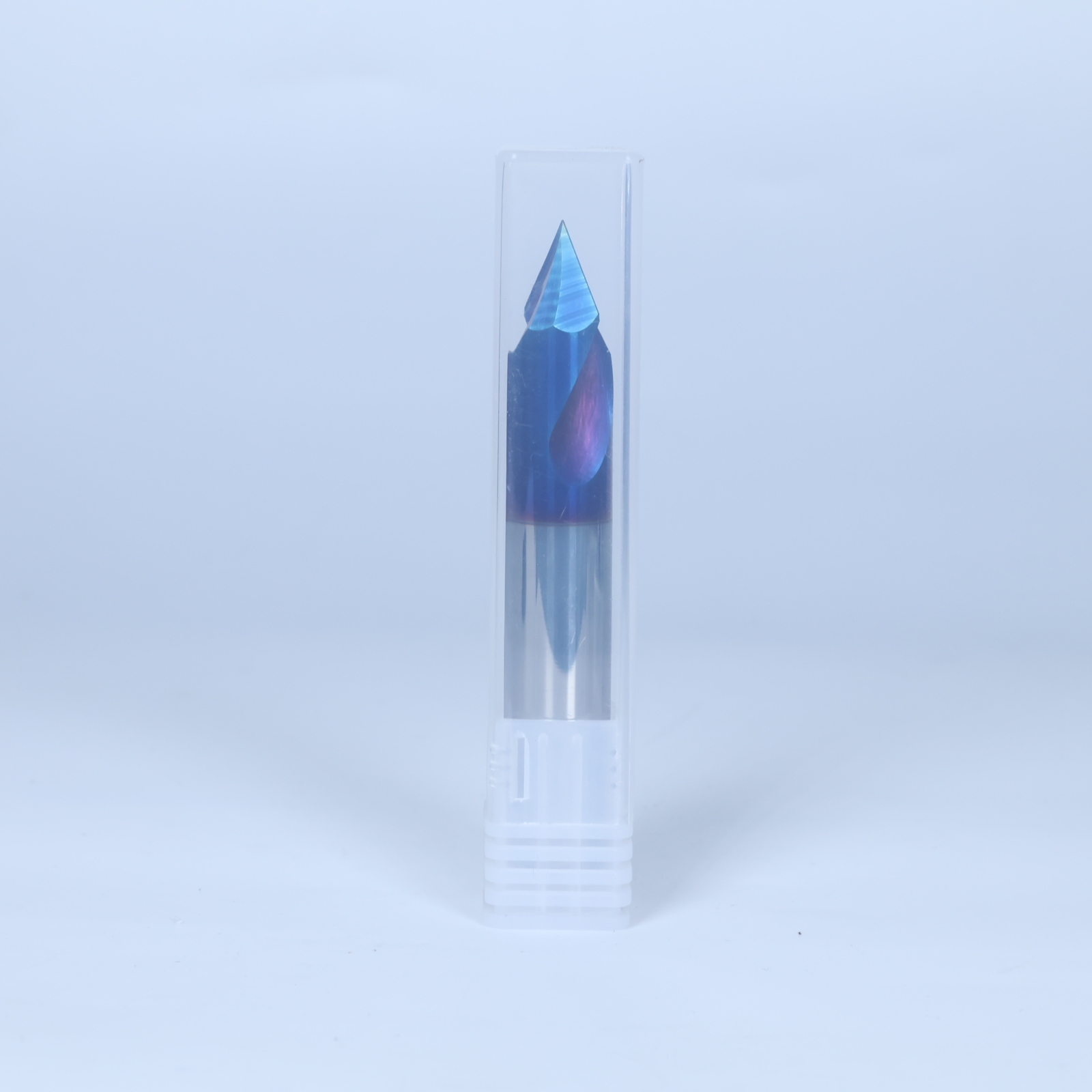

Single package effect

Single package effect

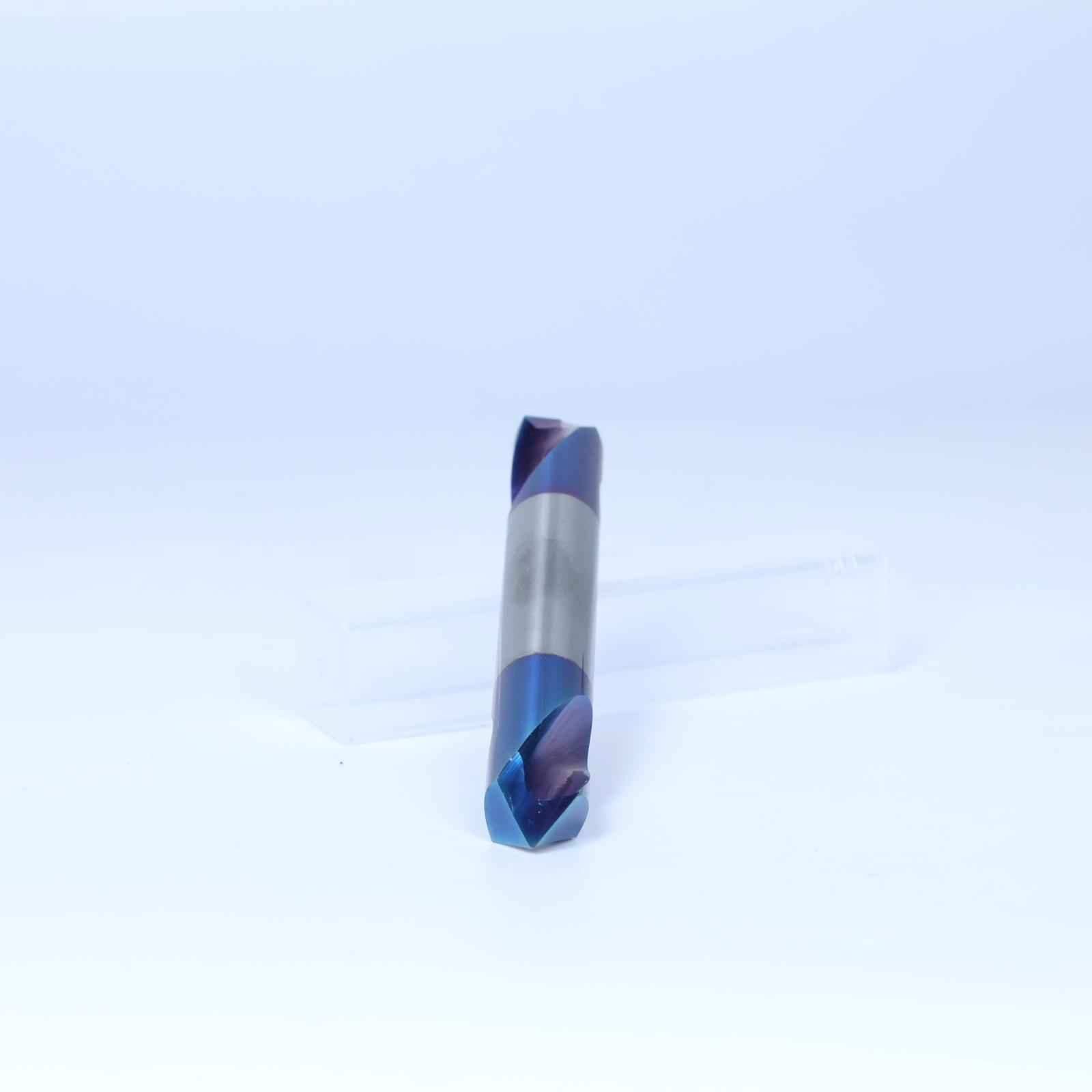

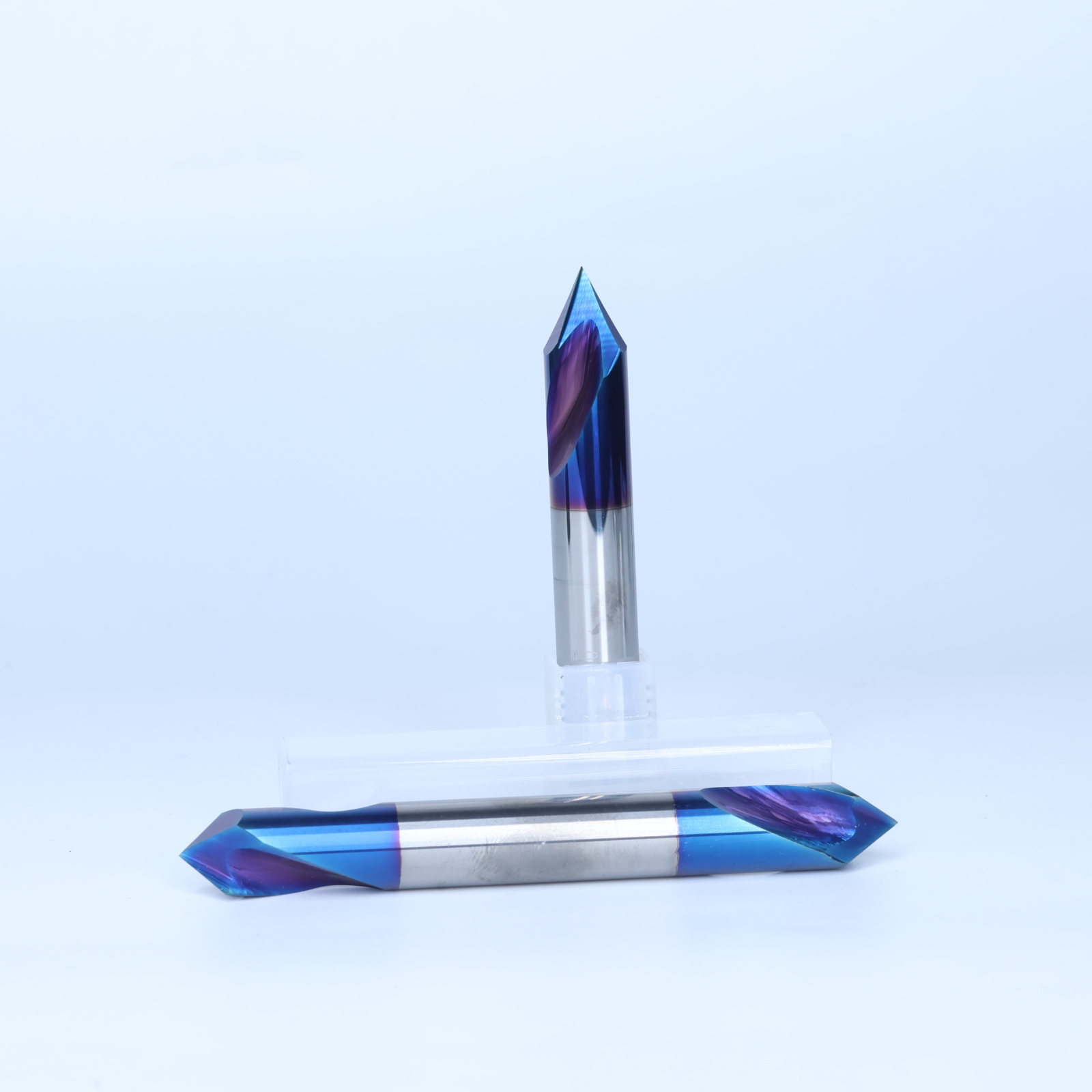

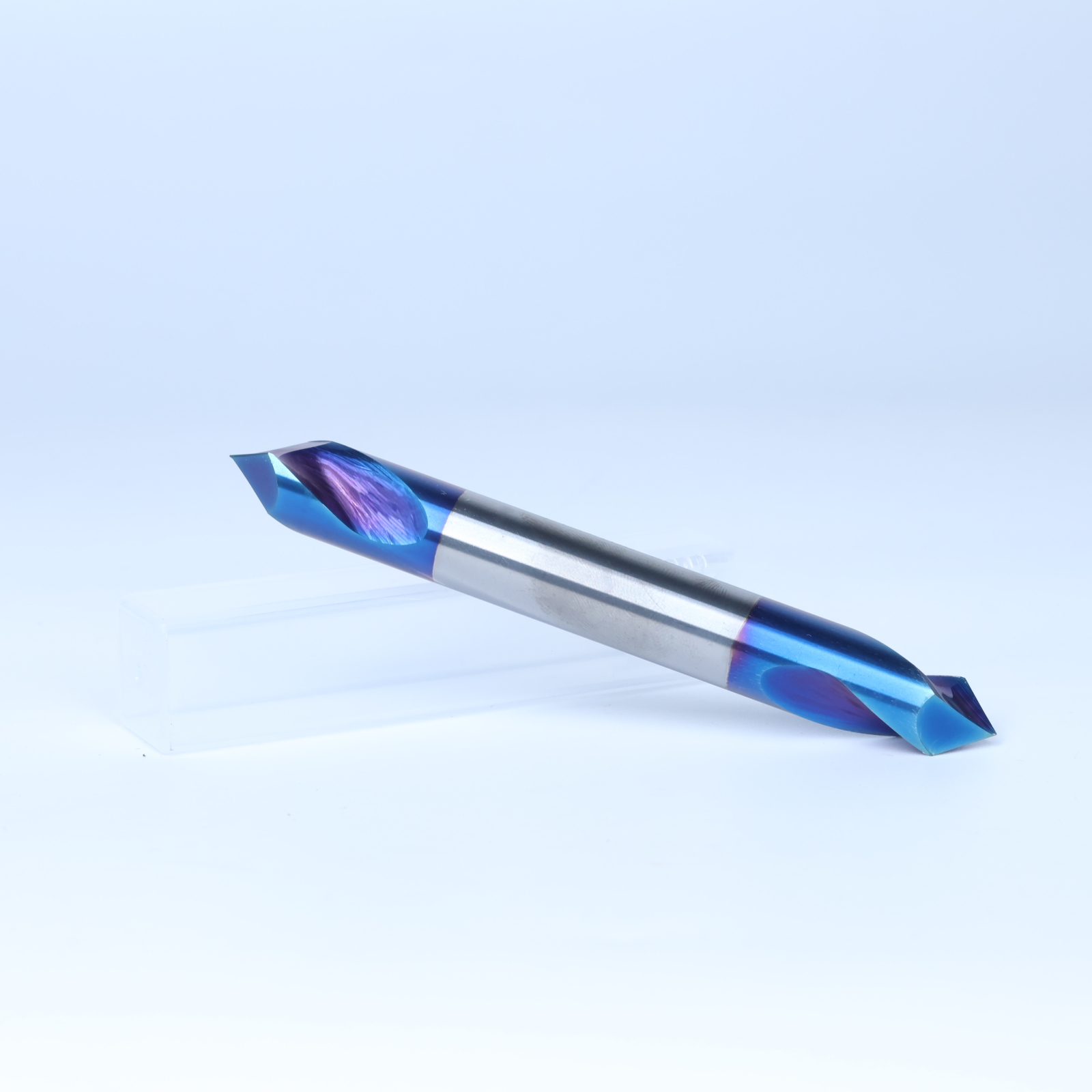

Double Head Drill

Double Head Drill

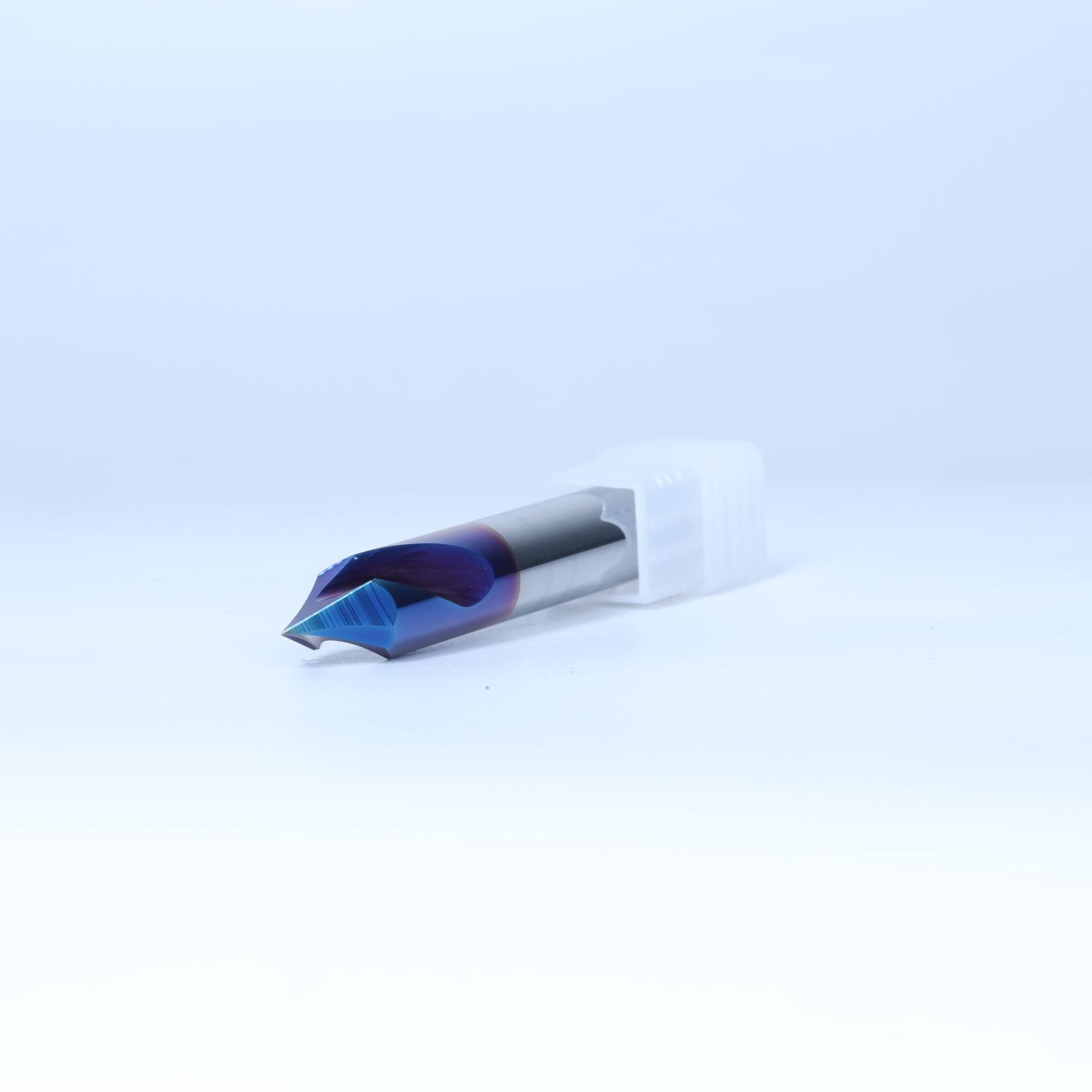

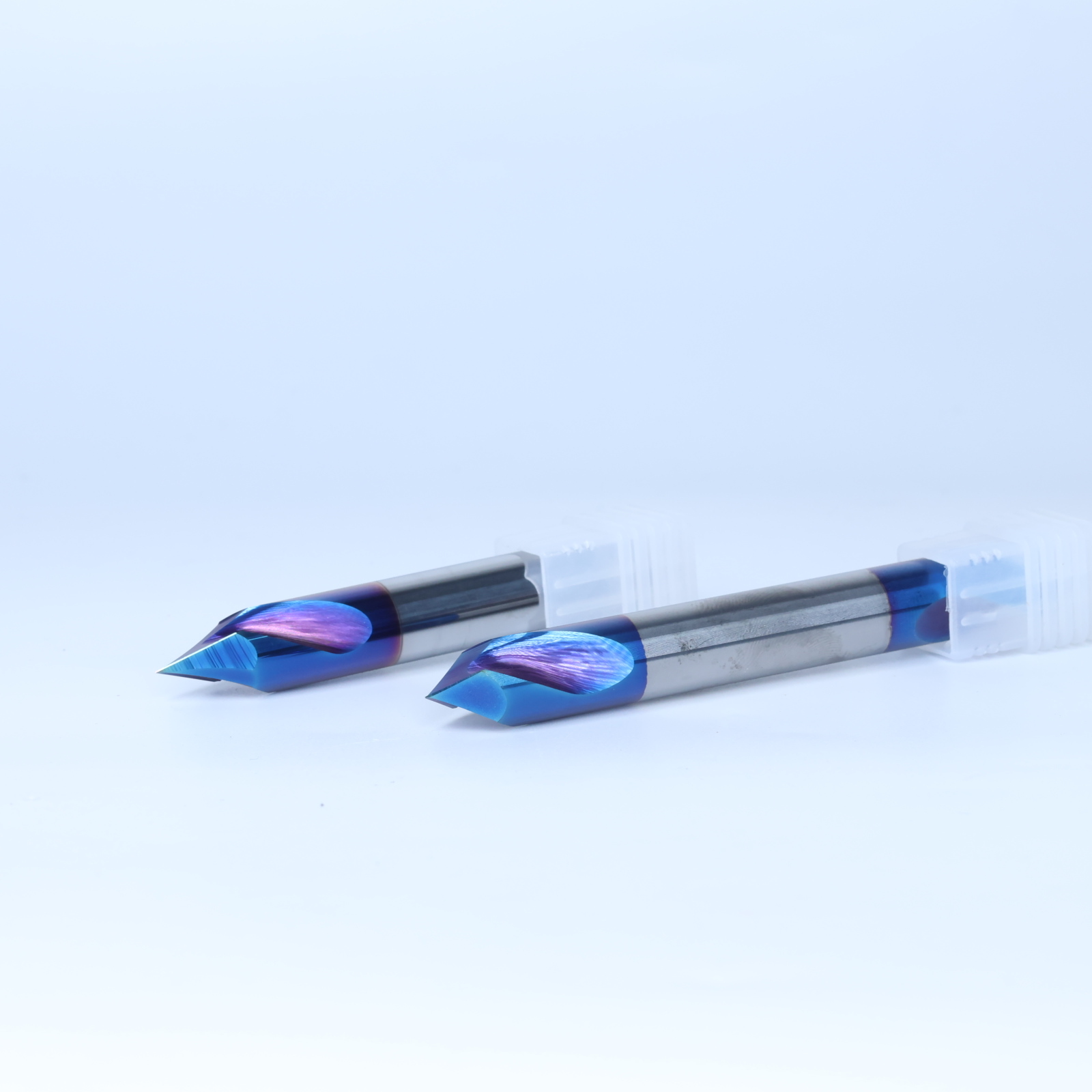

Blue Nano Chamfering Cutter

Blue Nano Chamfering Cutter

Blue Nano Chamfering Cutter

Blue Nano Chamfering Cutter
