Products Description

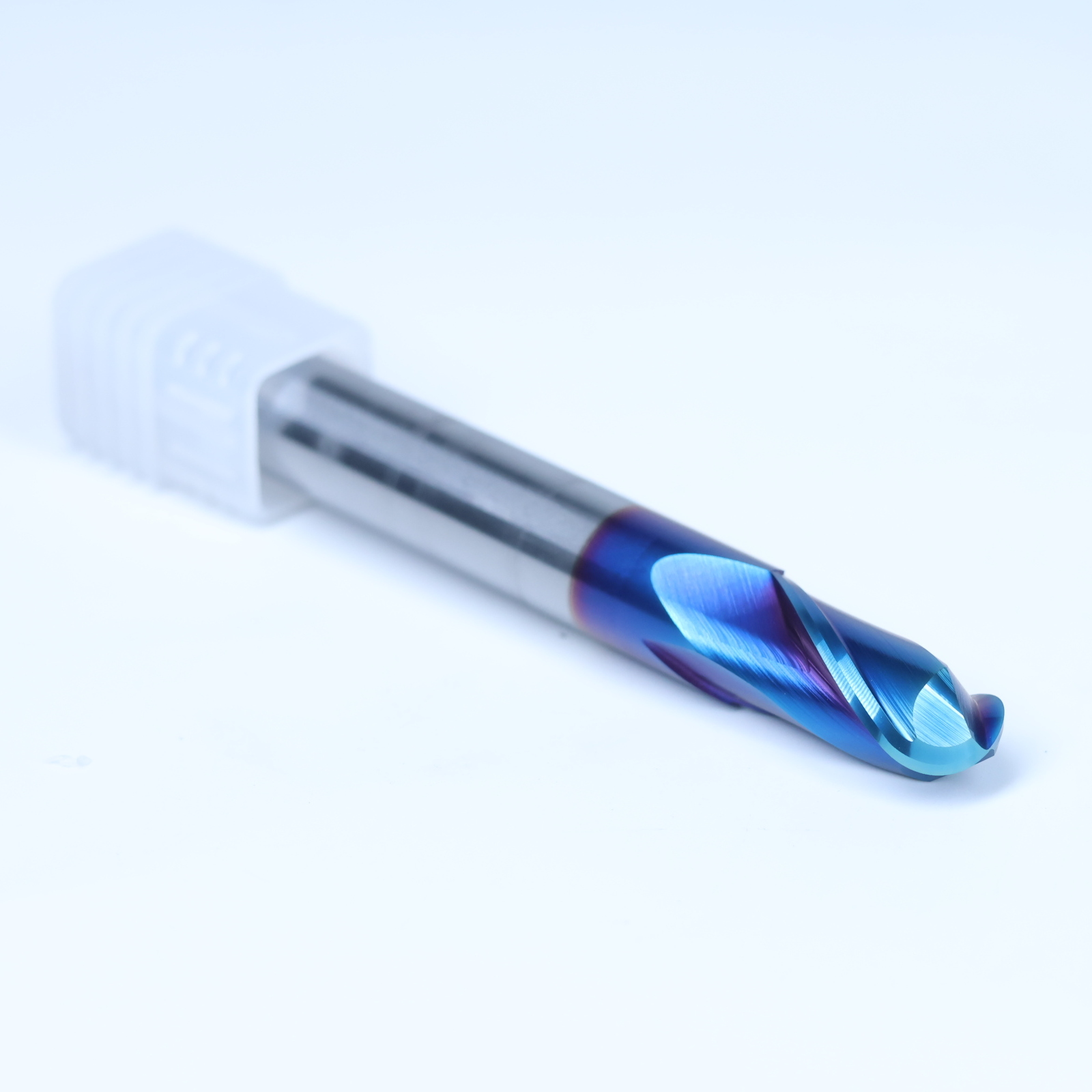

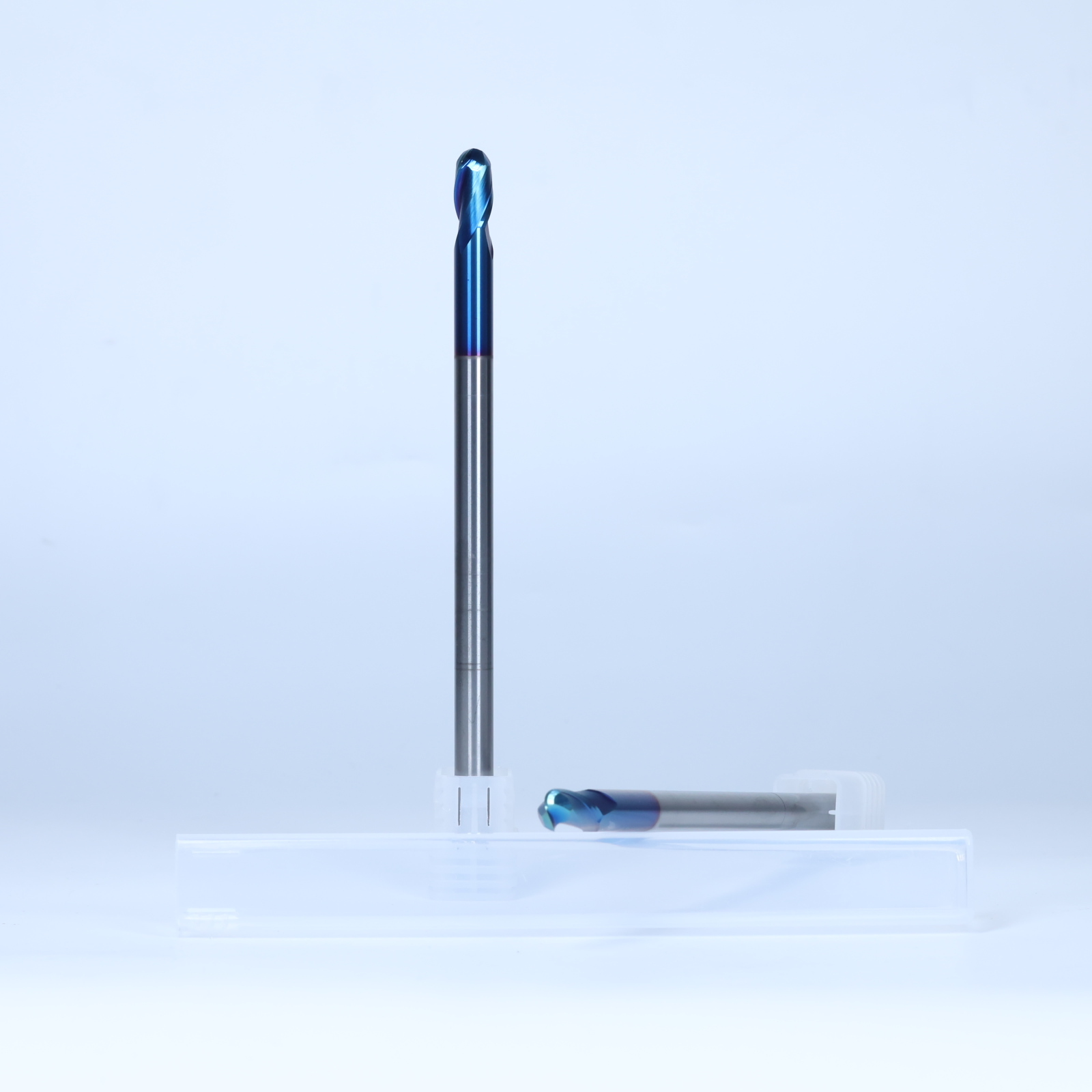

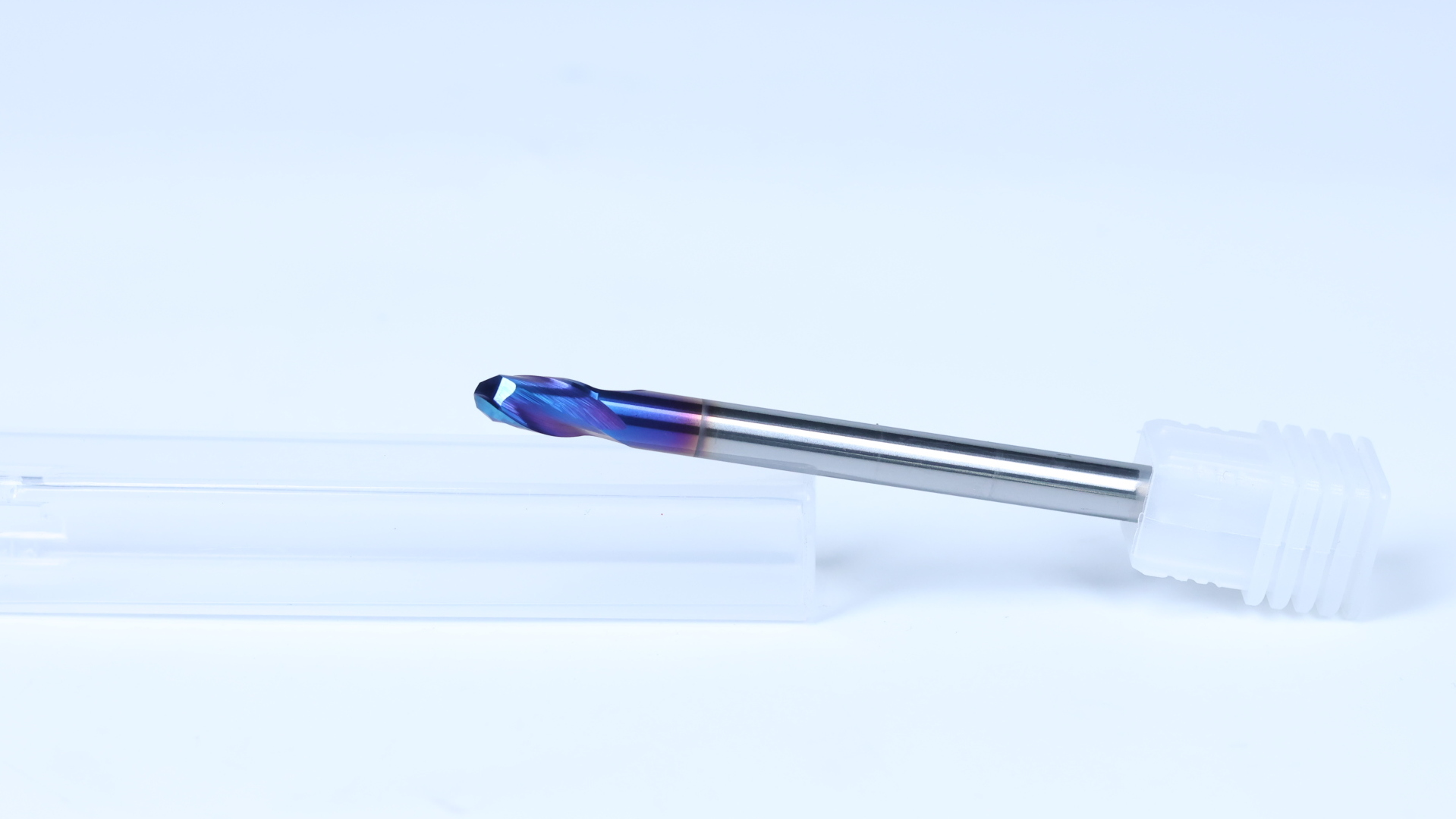

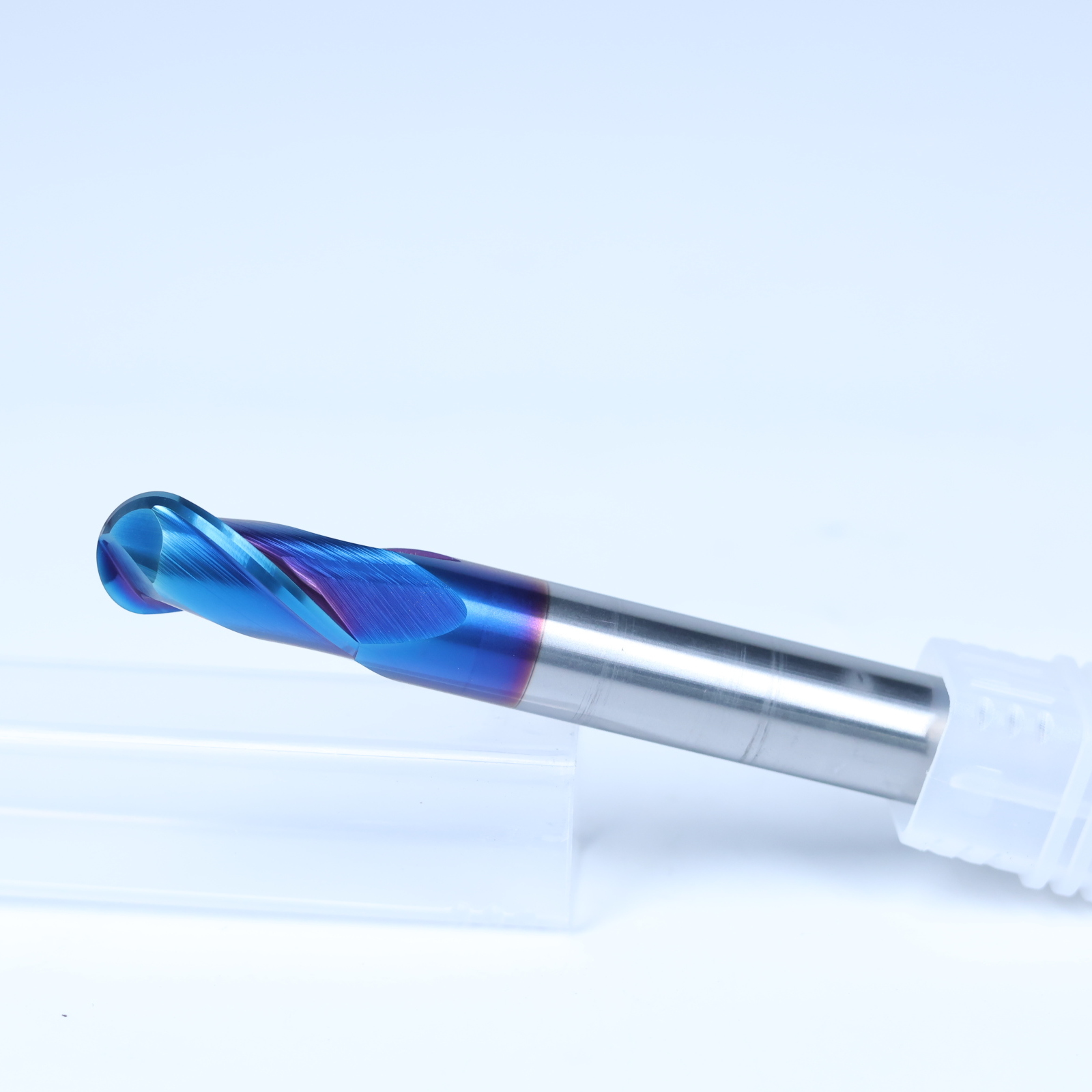

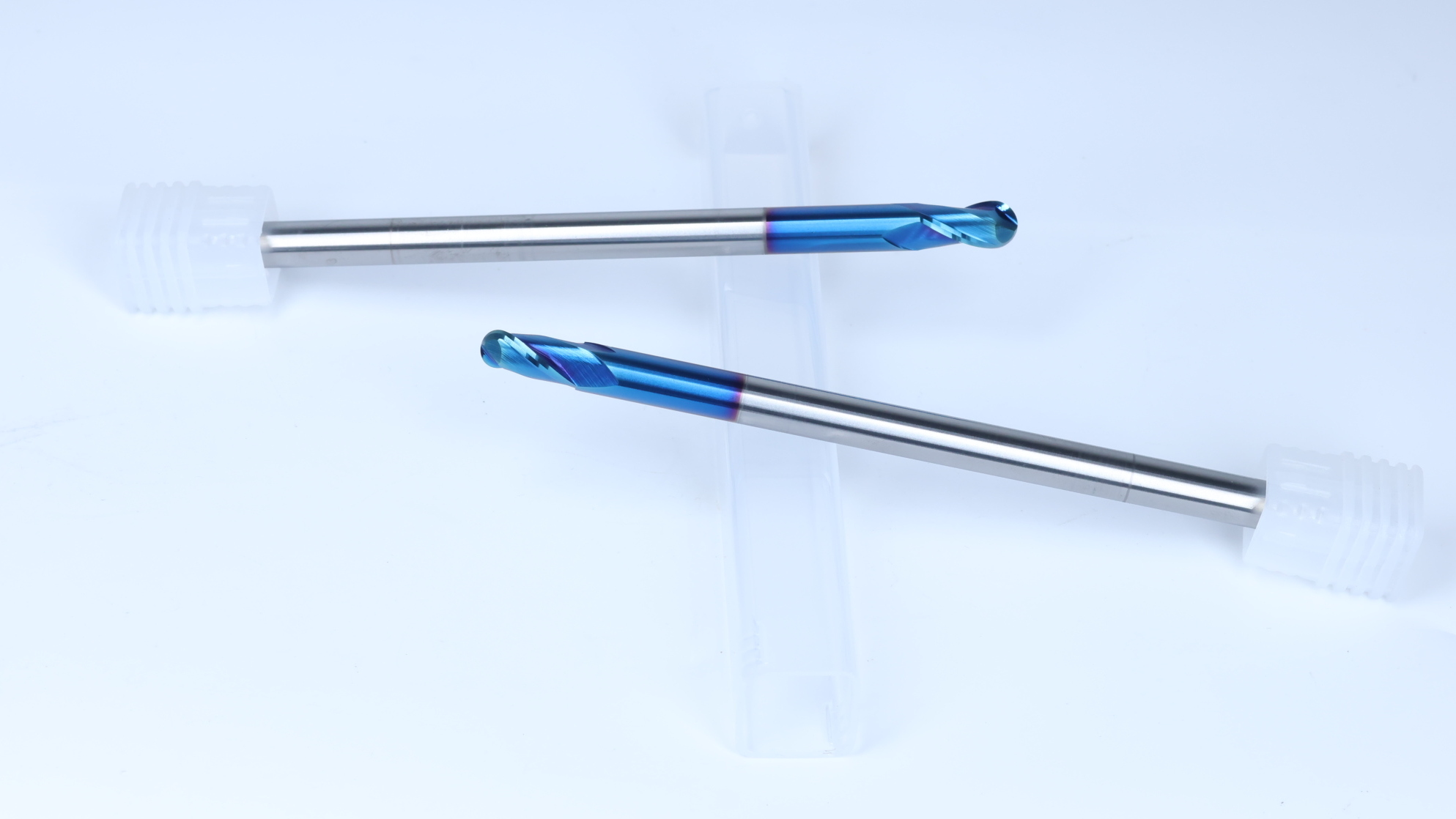

2-flute blue nano ball milling cutter
1.Product Information
| Material | Tungsten steel(Carbide) | Coating | blue coating |
| Brand | Zy/Customizable | Number of blades | 2 |
| Cutting hardness | 65 | Screw angle | 45 |
| Applicable materials | stainless steel;
alloy steel; mold steel; 45 steel and other steel materials; |
Applicable machines | CNC machining centers,precision engraving machines, precision engraving machines and other high speed equipment |
2.Feature Description
1.Large chip capacity, it can be widely used in groove and cavity processing of carbon steel and alloy steel.
2.Universal 2-flute ball end milling cutter can be widely used in profiling machining.
3.the special cuting edge design can realize the high-eficiency finishing and sem tnishing ofthe side wal of the wokpiece with hardhess below hrc52.
4.Arc design of knife tip, good anti-collapse performance.
3.Product Specifications

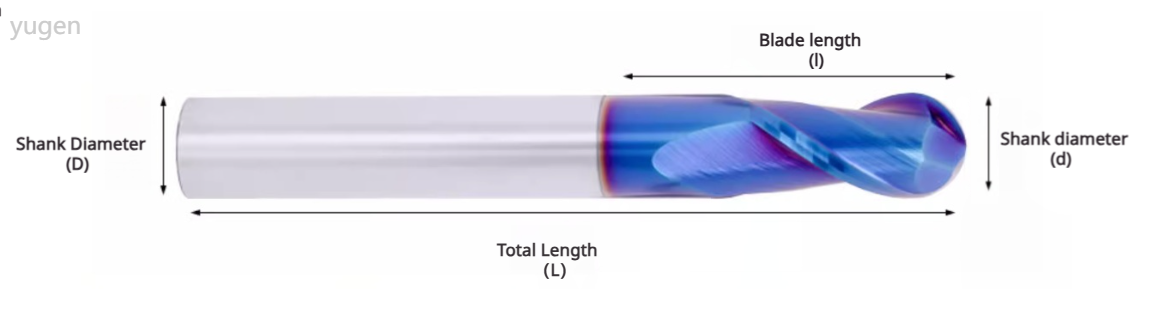

| serial NO. | Specifications
(dR*l*D*L) |
serial NO. | Specifications
(dR*l*D*L) |
serial NO. | Specifications
(dR*l*D*L) |
| 1 | 4R0.5*2*4D*50L | 13 | 4R2*8*4D*75L | 25 | 14R7*14*14D*100L |
| 2 | 4R0.75*3D*4*50L | 14 | 6R3*12*6D*75L | 26 | 16R8*16*16D*100L |
| 3 | 4R1*4*4D*50L | 15 | 8R4*16*8D*75L | 27 | 18R9*18*18D*100L |
| 4 | 4R1.25*5*4D*50L | 16 | 10R5*20*10D*75L | 28 | 20R10*20*20D*100L |
| 5 | 4R1.5*6*3D*50L | 17 | 12R6*24*12D*75L | 29 | 6R3*13*6D*150L |
| 6 | 4R1.5*6*4D*50L | 18 | 3R1.5*3*3D*100L | 30 | 8R4*16*8D*150L |
| 7 | 4R1.75*7*4D*50L | 19 | 6R3*12*6D*100L | 31 | 10R5*20*10D*150L |
| 8 | 4R2*8*4D*50L | 20 | 4R2*8*4D*100L | 32 | 12R6*24*12D*150L |
| 9 | 4R2.5*10*4D*50L | 21 | 5R2.5*5*5D*100L | 33 | 14R7*14*14D*150L |
| 10 | 6R2.5*10*6D*50L | 22 | 8R4*16*8D*100L | 34 | 16R8*16*16D*150L |
| 11 | 6R3*12*6D*50L | 23 | 10R5*20*10D*100L | 35 | 18R9*18*18D*150L |
| 12 | 8R4*16*8D*60L | 24 | 12R6*24*12D*100L | 36 | 20R10*20*20D*150L |
|
Other specifications can be customized |
|||||
Product Summary
Zy brand 2-edge blue nano ball cutter, with Jinlu material + nano coating as the core, integrates innovative processes such as passivation treatment and large core diameter design, redefines the processing efficiency of high hardness materials! Support wear-resistant, durable, non-standard customized OEM, welcome to contact us for free samples and processing solutions!Contact Name: reagan; Email:ligen8552@gmail .com; WhatsApp:18015808538;
