Products Description

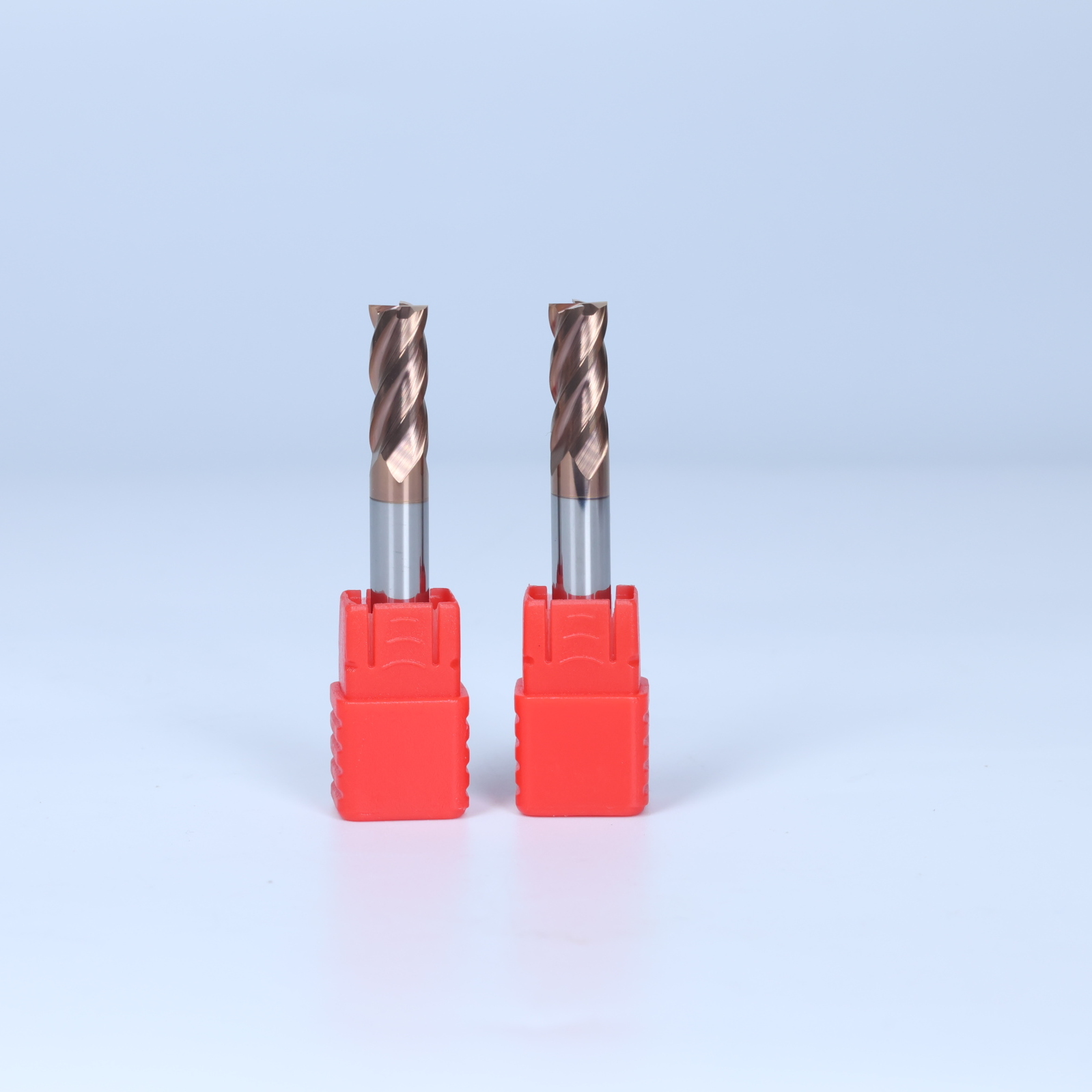

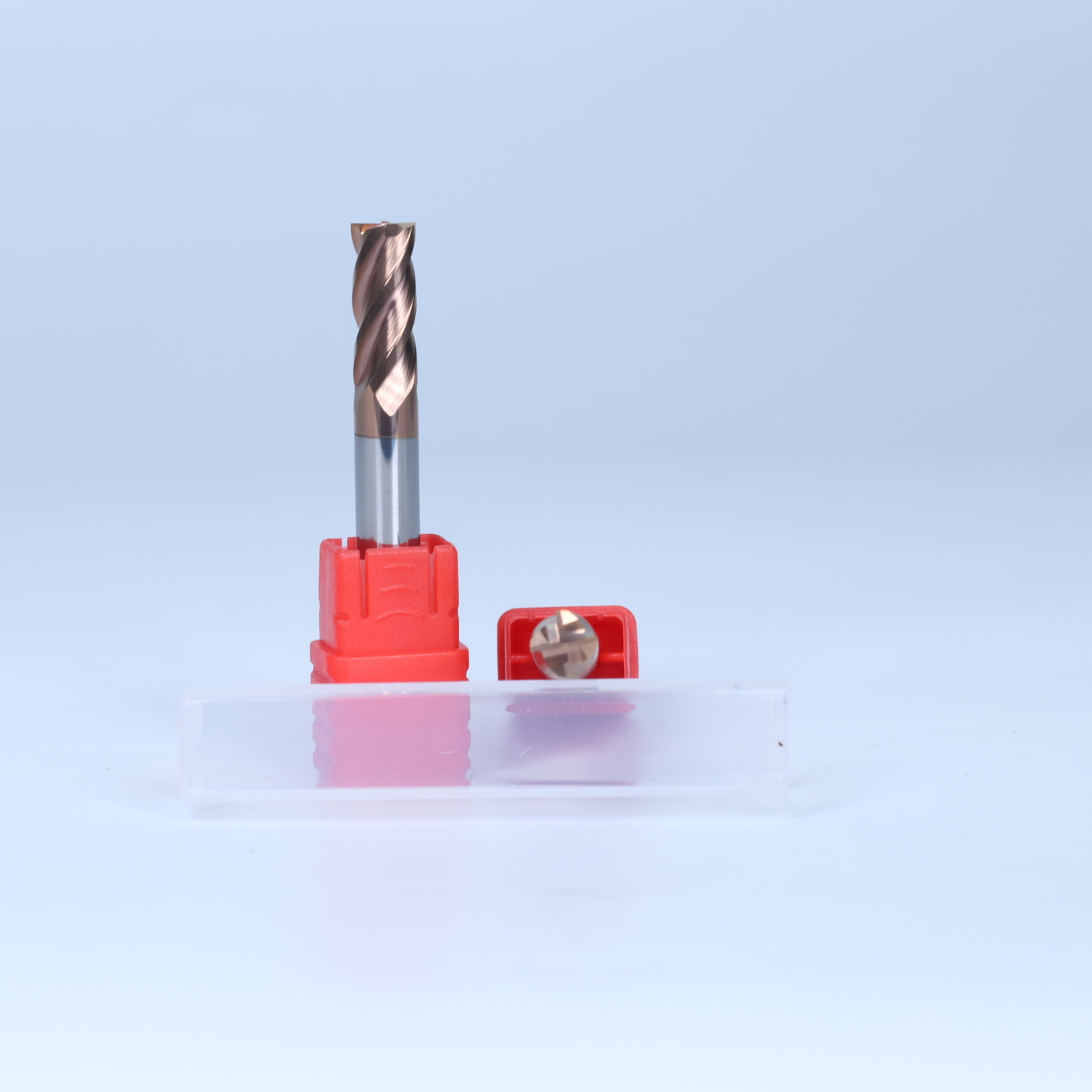

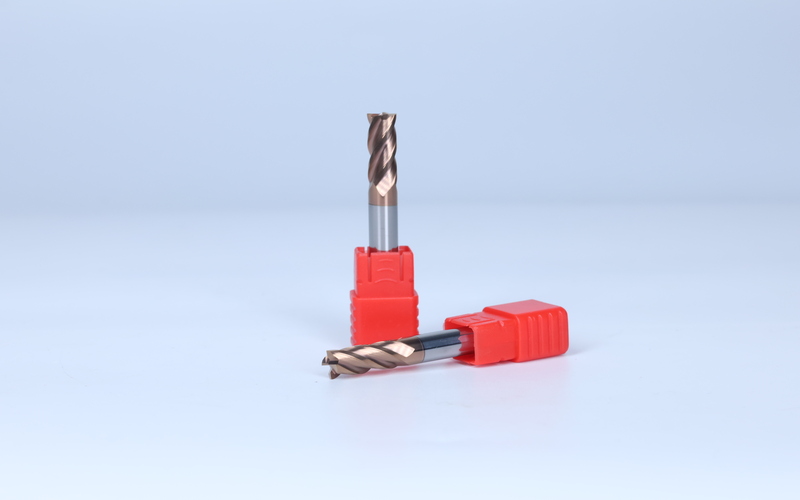

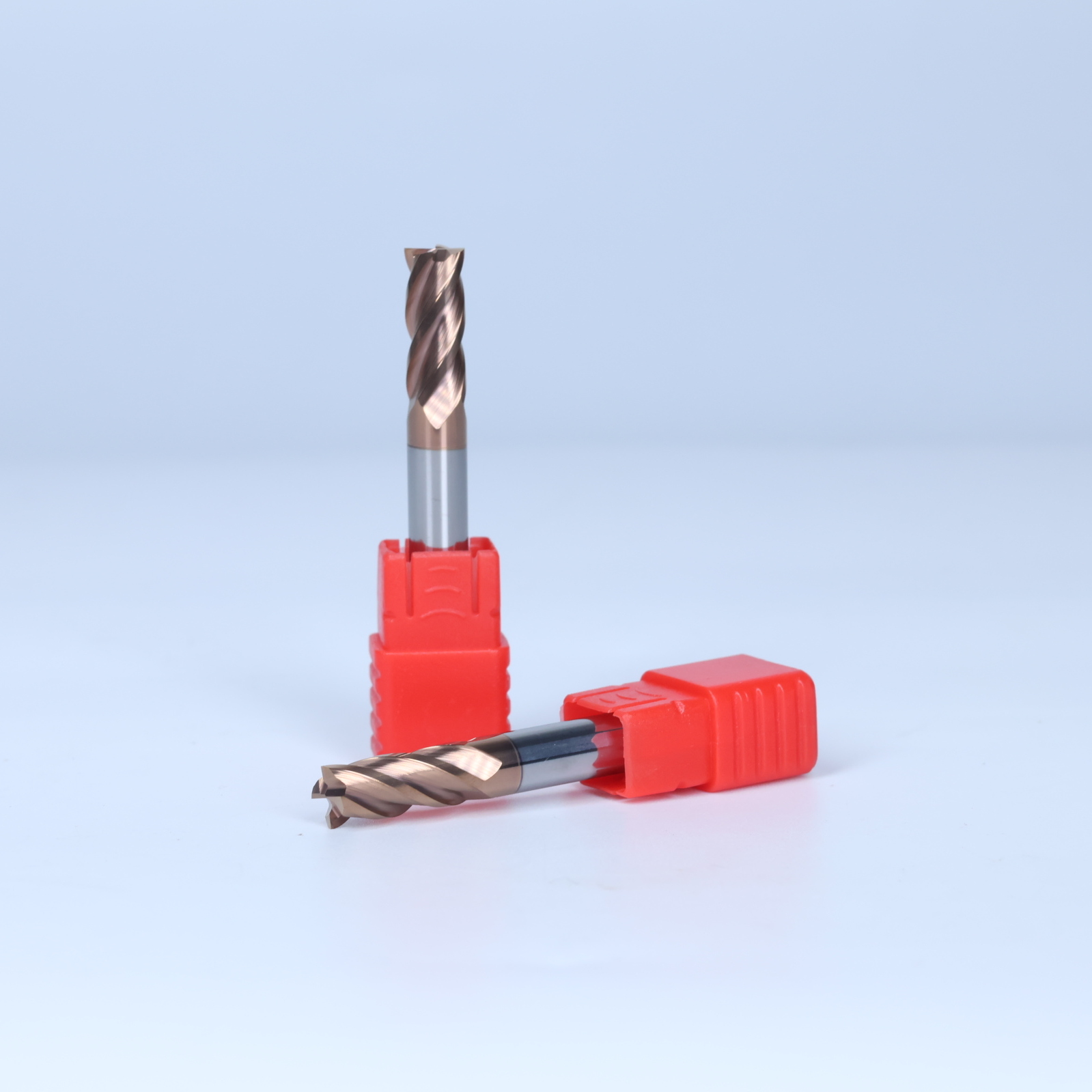

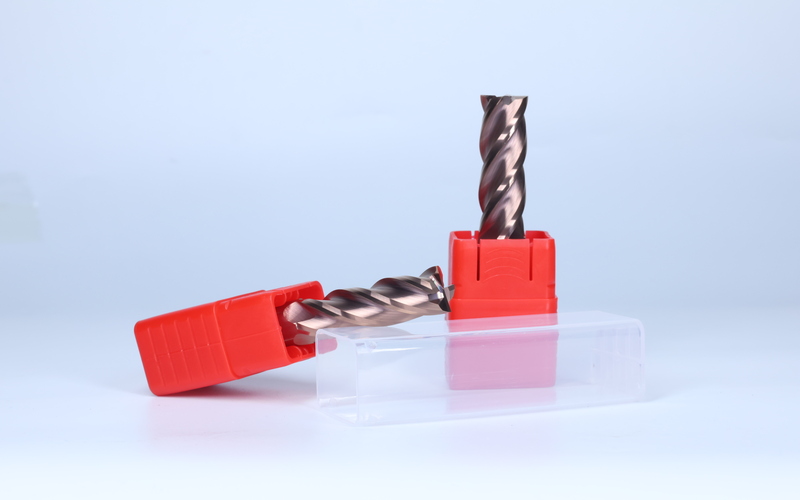

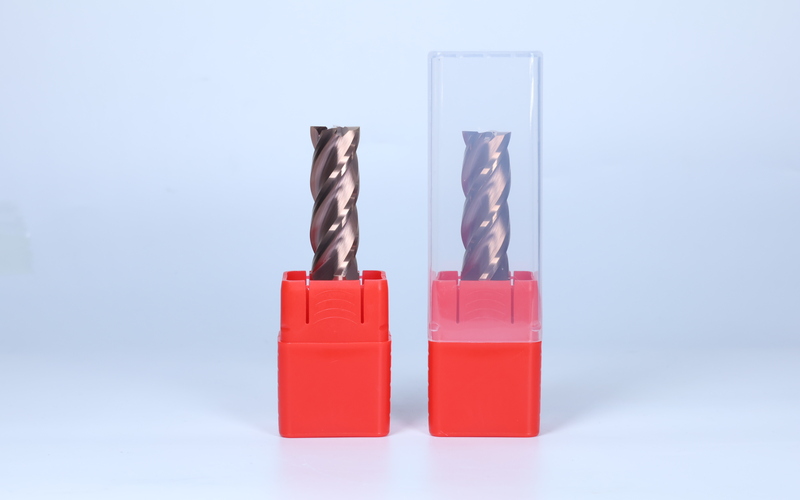

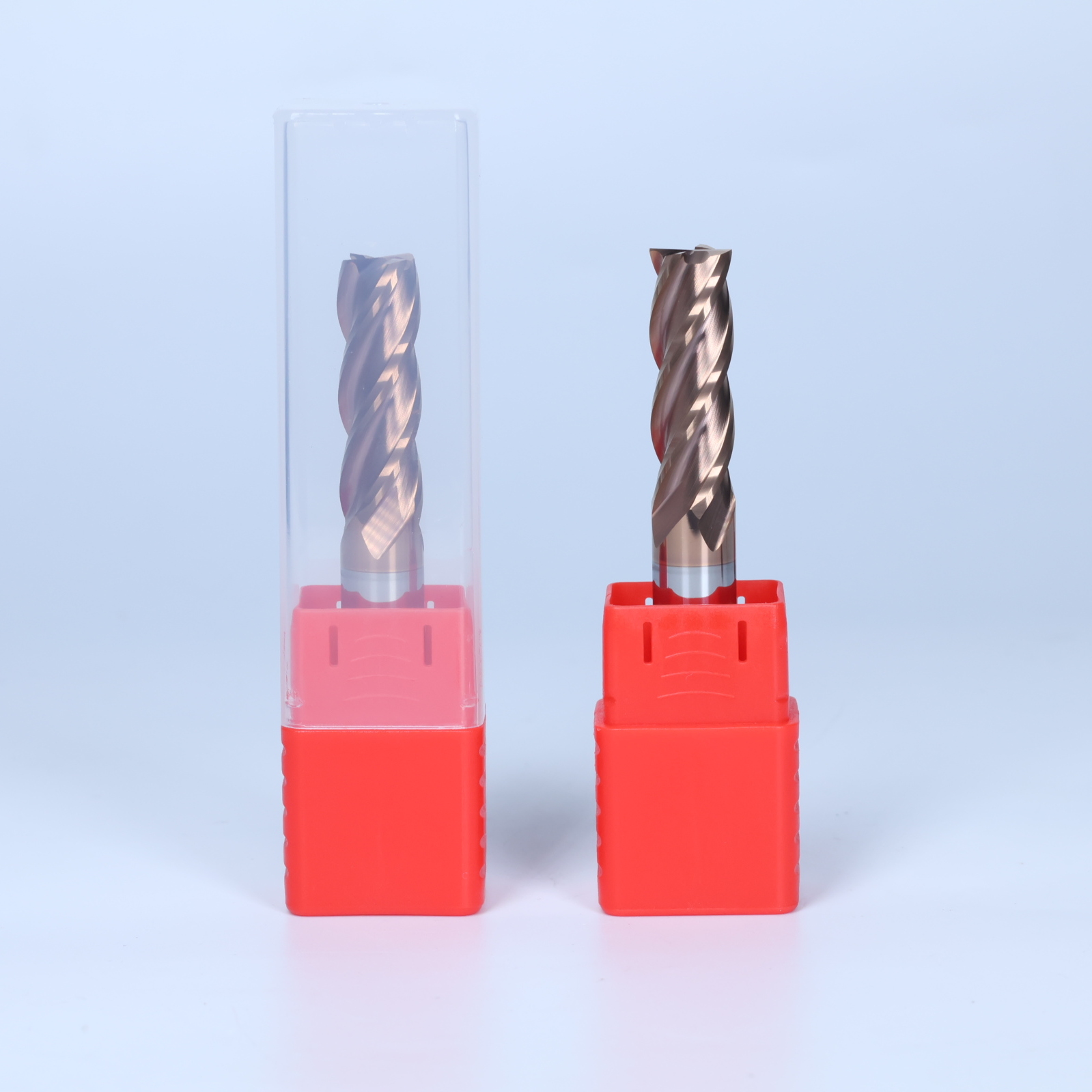

HRC58 Four-Flute Carbide End Mill
Product Information
| Material | Tungsten steel(Carbide) | Coating | TiAlN/AlCrN/TiCN |
| Brand | Zy/Customizable | Number of blades | 2,3,4 |
| Cutting hardness | below 58 | Screw angle | 60,90,120 |
| Applicable materials | 45# steel, cast iron, tool steel, abrasive steel and other materials | Applicable machines | CNC machining centers,precision engraving machines, precision engraving machines and other high speed equipment |
Feature Description
1.Fully ground edge for sharp cutting
2.Dual-edge design with precision-ground side edges
3.Four large chip flutes for smooth chip evacuation
4.Universal rounded chamfer
Product Specifications

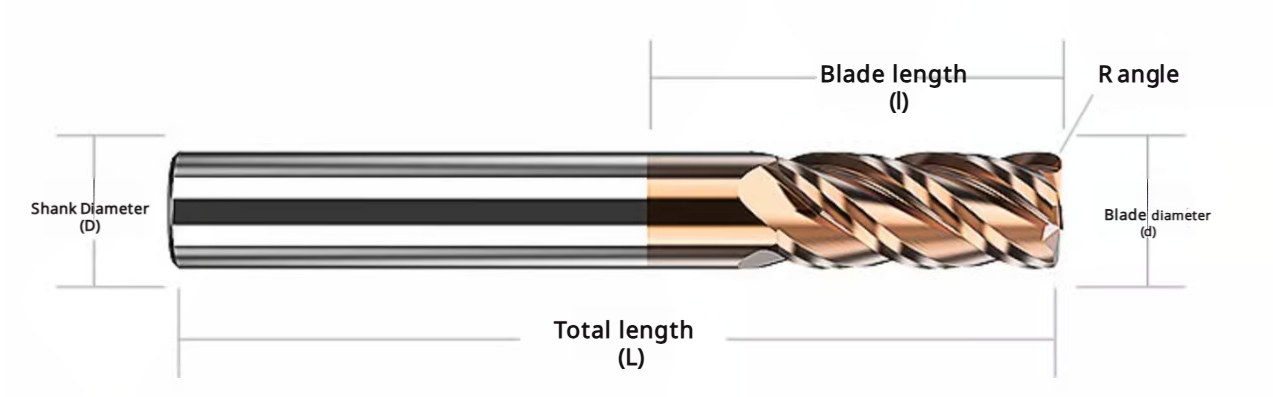

| serial NO. | Specifications
(d*l*D*L) |
serial NO. | Specifications
(d*l*D*L) |
serial NO. | Specifications
(d*l*D*L) |
| 1 | 1.0*3.0*4D*50L | 12 | 7.0*20*8D*60L | 23 | 16*45*16D*100L |
| 2 | 1.5*4.5*4D*50L | 13 | 8.0*20*8D*60L | 24 | 18*45*18D*100L |
| 3 | 2.0*6.0*4D*50L | 14 | 9.0*25*10D*75L | 25 | 20*45*20D*100L |
| 4 | 2.5*7.0*4D*50L | 15 | 10*25*10D*75L | 26 | 3.0*12*3D*75L |
| 5 | 3.0*8.0*3D*50L | 16 | 10*30*10D*75L | 27 | 4.0*16*4D*75L |
| 6 | 3.0*8.0*4D*50L | 17 | 11*30*12D*75L | 28 | 5.0*20*5D*75L |
| 7 | 3.5*10*4D*50L | 18 | 12*30*12D*75L | 29 | 6.0*20*6D*75L |
| 8 | 4.0*10*4D*50L | 19 | 12*35*12D*75L | 30 | 8.0*25*8D*75L |
| 9 | 5.0*13*5D*50L | 20 | 13*35*14D*100L | 31 | 5.0*20*5D*100L |
| 10 | 5.0*13*6D*50L | 21 | 14*45*14D*100L | 32 | 6.0*30*6D*100L |
| 11 | 5.0*15*6D*50L | 22 | 14*45*16D*100L | ||
| Other specifications can be customized | |||||
Key Specifications Reference
Number of Flutes: 4-flute design enhances chip evacuation efficiency and machining stability
Coating Options:
- TiAlN: Suitable for high-temperature alloy machining (>800°C heat resistance)
- AlCrN: High wear resistance, ideal for stainless steel & hardened steelSize Range: Diameter coverage D1.0–D20.0mm; Cutting length up to 200mm
Application Scenarios
High-hardness materials: Mold steel, tool steel, titanium alloys (HRC45–65)
Machining types: Finishing, roughing, deep cavity milling
