Products Description
Round Nose milling Cutter Product Information
| Material | Tungsten Carbide | Coating | Nano coating |
| Brand | Zy/Customizable | Number of blade | 2 |
| Cutting hardness | HRC60 | Helix Angle | 45° |
| Applicable materials | Alloy steel, die steel, 45# steel, cast iron and other rigid materials | Process | CNC machining center, precision engraving, engraving machine and other high-speed machines |
Round Nose milling Cutter Feature Description
1.Large chip space, can be widely used in groove and cavity processing of carbon steel and alloy steel.
2.Universal 2-edge ball end milling cutter can be widely used in profling machining.
3.the special cuting edge design can realize the high.eficiency finishing and sem tnishing of the side wal of the wokpiece with hardhess below hrc40.
4.Arc design of knife tip, good anti-collapse perforance.

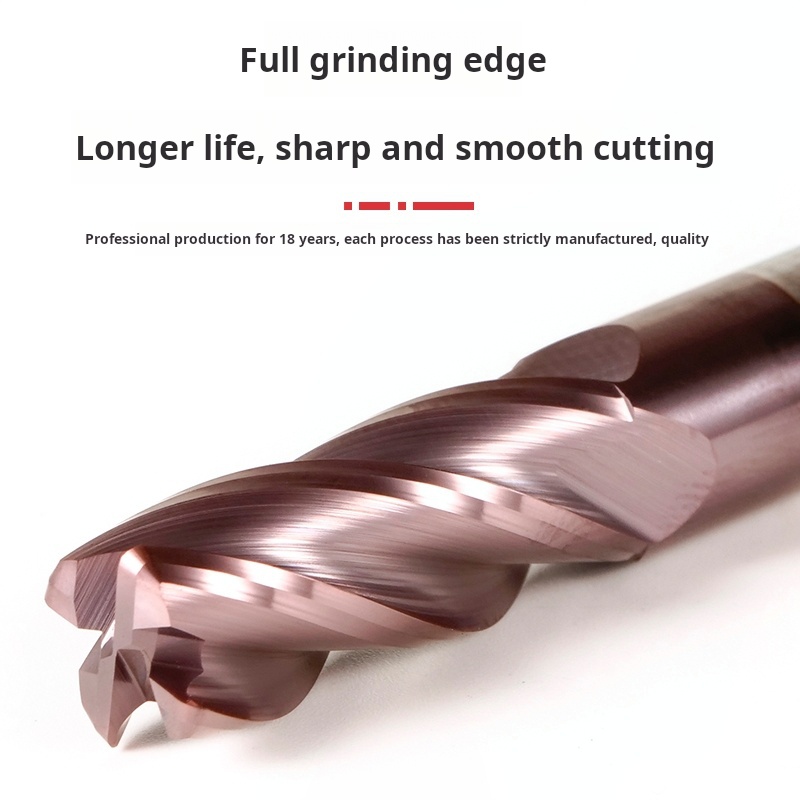

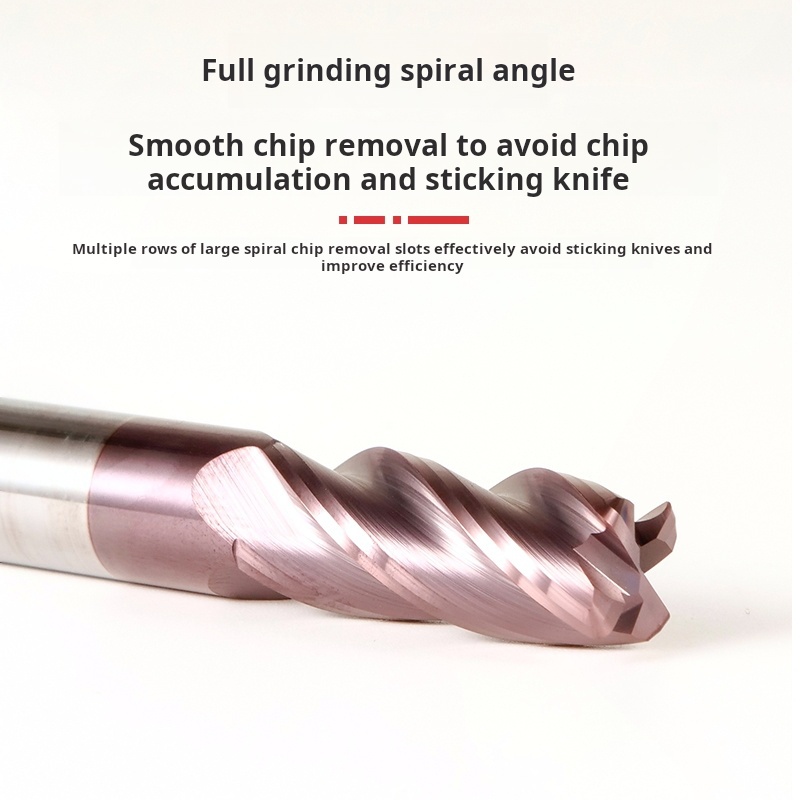

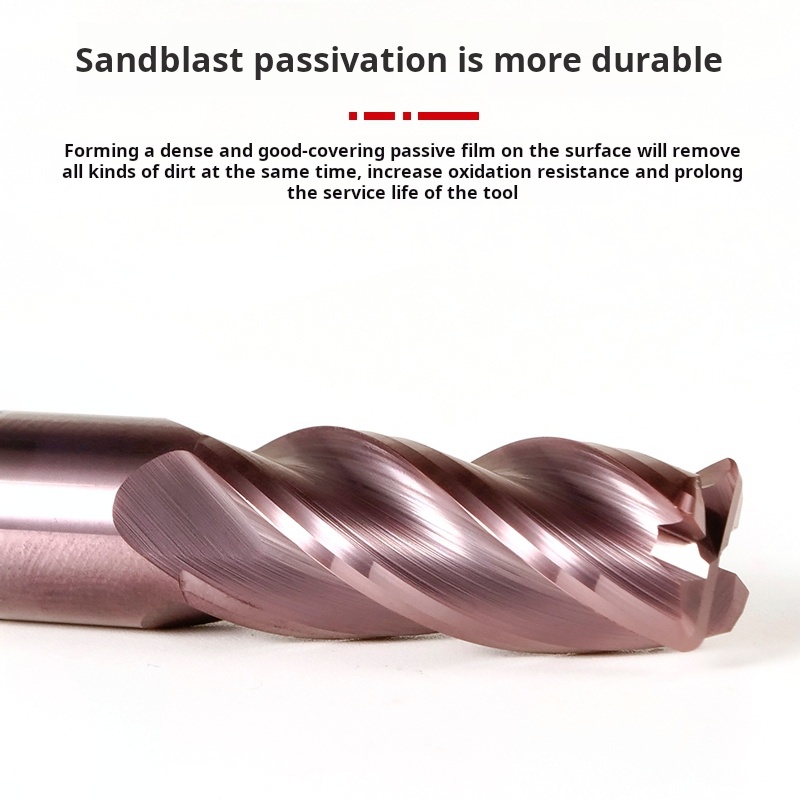

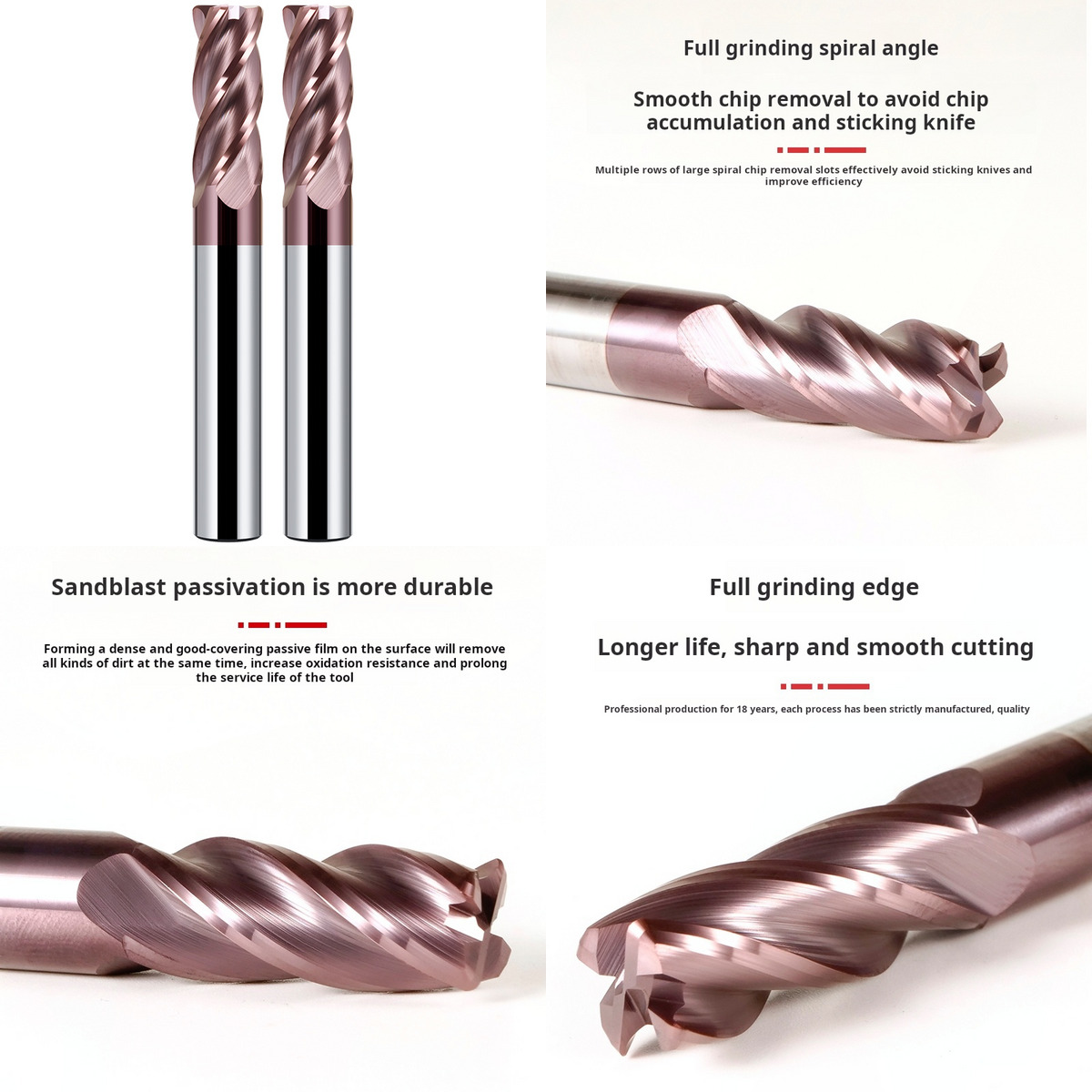

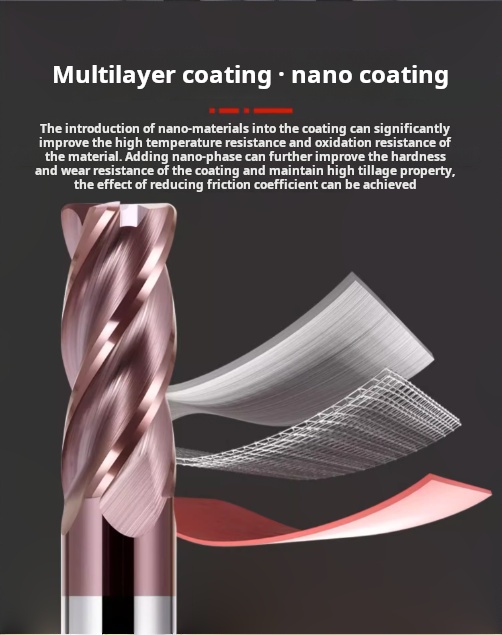

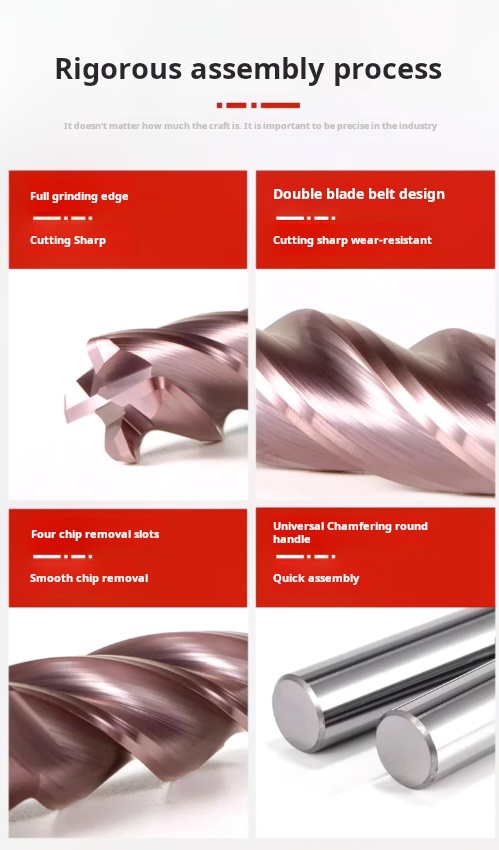

Round Nose milling Cutter Product Image
Round Nose milling Cutter Product Specifications
|
serial NO. |
Specifications(Blade diameter R angel*Blade length*Shank diameter*Total length) |
|
1 |
1.0R0.2*3.0*4D*50L |
| 2 |
1.5R0.2*4.5*4D*50L |
| 3 | 2.0R0.5*6.0*4D*50L |
| 4 | 3.0R0.5*8.0*4D*50L |
| 5 | 4.0R0.5*10*4D*50L |
| 6 | 4.0R1.0*10*4D*50L |
| 7 | 5.0R0.5*13*6D*50L |
| 8 | 6.0R0.5*15*6D*50L |
| 9 | 6.0R1.0*15*6D*50L |
| 10 |
4.0R0.5*16*4D*75L |
| 11 | 4.0R1.0*16*4D*75L |
| 12 | 6.0R0.5*20*6D*75L |
| 13 | 6.0R1.0*20*6D*75L |
| 14 | 8.0R0.5*25*8D*75L |
| 15 | 8.0R1.0*25*8D*75L |
| 16 | 10R0.5*25*10D*75L |
|
17 |
10R1.0*25*10D*75L |
| 18 |
10R2.0*25*10D*75L |
| 19 | 12R0.5*30*12D*75L |
| 20 | 12R1.0*30*12D*75L |
| 21 | 12R2.0*30*12D*75L |
| 22 | 4.0R0.5*20*4D*100L |
| 23 | 4.0R1.0*20*4D*100L |
| 24 | 6.0R0.5*30*6D*100L |
| 25 | 6.0R1.0*30*6D*100L |
| 26 | 8.0R0.5*35*8D*100L |
| 27 | 8.0R1.0*35*8D*100L |
| 28 | 10R0.5*40*10D*100L |
| 29 | 10R1.0*40*10D*100L |
| 30 |
12R1.0*45*12D*100L |
| 31 |
Other specifications can be customized |
If you have any purchasing needs for carbide milling cutters, please contact me.Click to view other products
