Product Information（Lollipop Ball milling Cutter）
| Material | Tungsten Carbide | Coating | Bronze Nano |
| Brand | Zy/Customizable | Number of blade | 2,3 |
| Cutting hardness | HRC55,HRC58 | Helix Angle | 35° |
| Applicable materials | 45# steel, alloy steel, mold steel, aluminum alloy, copper, PVC, etc.; | Process | CNC machining center, precision engraving, engraving machine and other high-speed machines |
Feature Description
1.Lollipop design with long neck to avoid air gaps

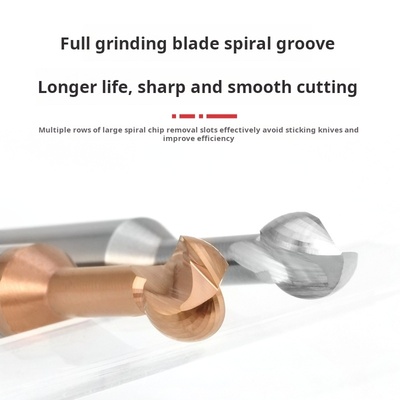

2.Fully ground edge with spiral grooves for longer life and sharp and smooth cutting
3.Sandblasting passivation for greater durability

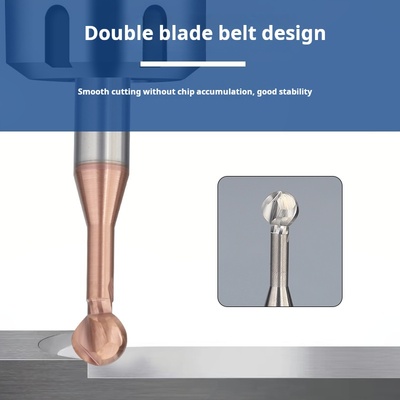

4 Double edge band design for smooth cutting without chip accumulation and good stability

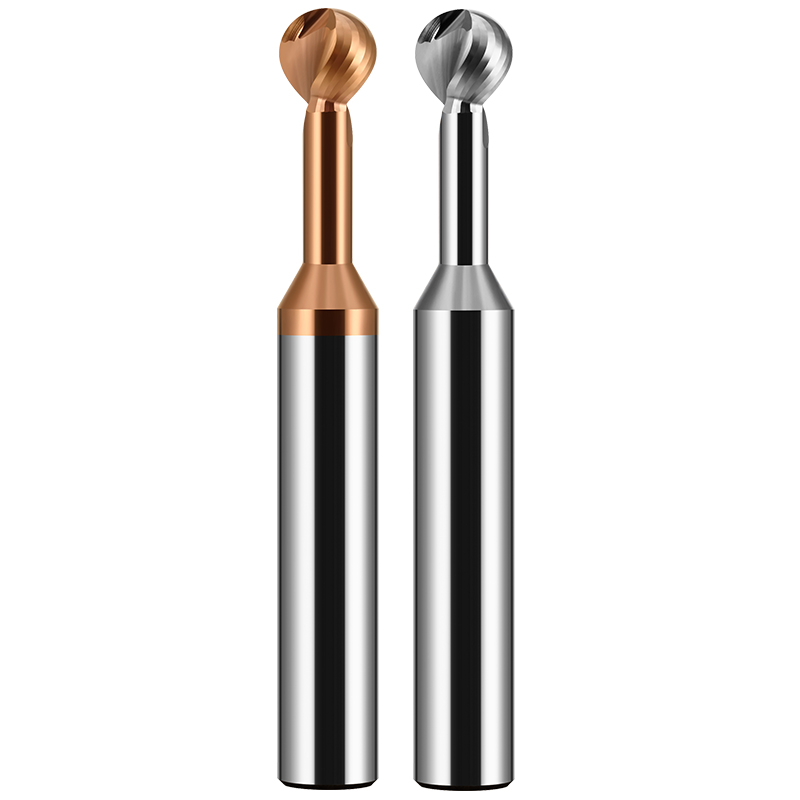

Product Image
Product Specifications

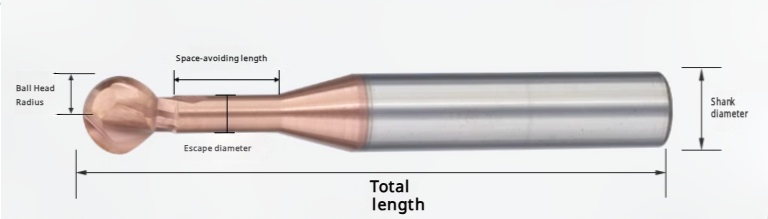

| serial NO. | Specifications
(Ball radius*neck diameter*neck length*shank diameter*total length) |
| 1 | R0.5*d0.5*2L*D4*50L |
| 2 | R0.75*d0.75*3L*D4*50L |
| 3 | R1*d1*4L*D4*50L |
| 4 | R1.25*d1.25*4L*D4*50L |
| 5 | R1.5*d1.5*6L*D4*50L |
| 6 | R2*d2*8L*D4*50L |

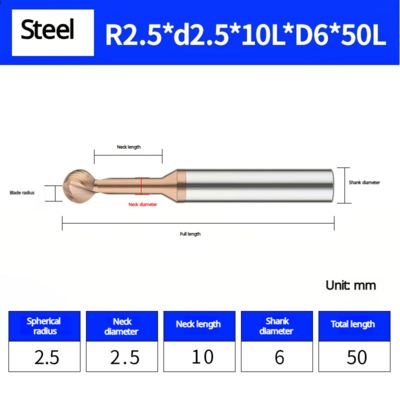

| 7 | R2.5*d2.5*10L*D6*50L |
| 8 | R3*d3*10L*D6*50L |
| 9 | R4*d4*12L*D8*60L |
| 10 | R5*d5*15L*D10*60L |
| 11 | R6*d6*15L*D12*60L |
| 12 | R7*d7*20L*D14*75L |
| 13 | R8*d8*20L*D16*75L |
| 14 | R9*d9*20L*D18*75L |
| 15 | R10*d10*20L*D20*75L |
| 16 | Other specifications can be customized |
Changzhou Yugen Tools Co., Ltd.&Changzhou Zhiyu Cemented Carbide Tools Co., Ltd.We are a professional tool manufacturer, mainly carbide tools.
Our advantages are: 1. Stable product quality 2. On-time delivery 3. Competitive price. We not only have the ability to manufacture standard tools, but also can design according to workpiece drawings, provide tool cutting solutions for production workpieces and the ability to produce customized tools!
If you have any questions, you can contact me.Please click to view other milling cutters
Our advantages are: 1. Stable product quality 2. On-time delivery 3. Competitive price. We not only have the ability to manufacture standard tools, but also can design according to workpiece drawings, provide tool cutting solutions for production workpieces and the ability to produce customized tools!
If you have any questions, you can contact me.Please click to view other milling cutters
