Products Description
| Material | Tungsten steel(Carbide) | Coating | blue coating |
| Brand | Zy/Customizable | Number of blades | 2,3,4,6 |
| Cutting hardness | 65 | Screw angle | 35,45 |
| Applicable materials | stainless steel;
alloy steel; mold steel; 45 steel and other steel materials; |
Applicable machines | CNC machining centers,precision engraving machines, precision engraving machines and other high speed equipment |
Feature Description
1.Large chip capacity, it can be widely used in groove and cavity processing of carbon steel and alloy steel.
2.Universal 2-edge ball end milling cutter can be widely used in profiling machining.
3.the special cuting edge design can realize the high-eficiency finishing and sem tnishing ofthe side wal of the wokpiece with hardhess below hrc52.
4.Arc design of knife tip, good anti-collapse performance.

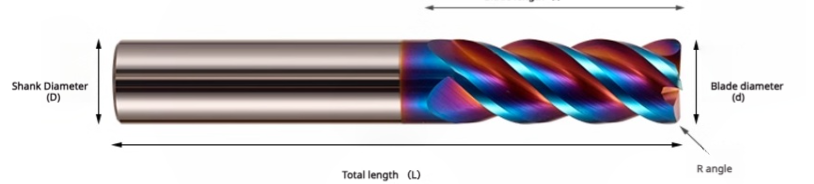

| serial NO. | Specifications
(d*l*D*L) |
serial NO. | Specifications
(d*l*D*L) |
serial NO. | Specifications
(d*l*D*L) |
| 1 | 1.0*3.0*4D*50L | 12 | 7*20*8D*60L | 23 | 3*12*3D*100L |
| 2 | 1.5*4.5*4D*50L | 13 | 8*24*8D*60L | 24 | 4*12*4D*100L |
| 3 | 2.0*6*4D*50L | 14 | 3*10*3D*75L | 25 | 5*30*5D*100L |
| 4 | 2.5*7.5*4D*50L | 15 | 4*16*4D*75L | 26 | 6*30*6D*100L |
| 5 | 3*9*3D*50L | 16 | 5*20*5D*75L | 27 | 8*35*8D*100L |
| 6 | 3*9*4D*50L | 17 | 6*25*6D*75L | 28 | 10*40*10D*100L |
| 7 | 3.5*10*4D*50L | 18 | 8*30*8D*75L | 29 | 12*45*12D*100L |
| 8 | 4*12*4D*50L | 19 | 9*30*10D*75L | 30 | 14*45*14D*100L |
| 9 | 5*15*5D*50L | 20 | 10*30*10D*75L | 31 | 16*45*16D*100L |
| 10 | 5*15*6D*50L | 21 | 11*30*12D*75L | 32 | 18*45*18D*100L |
| 11 | 6*18*6D*50L | 22 | 12*35*12D*75L | 33 | 20*45*20D*100L |
| Other specifications can be customized | |||||
Tags:
Technical parameter

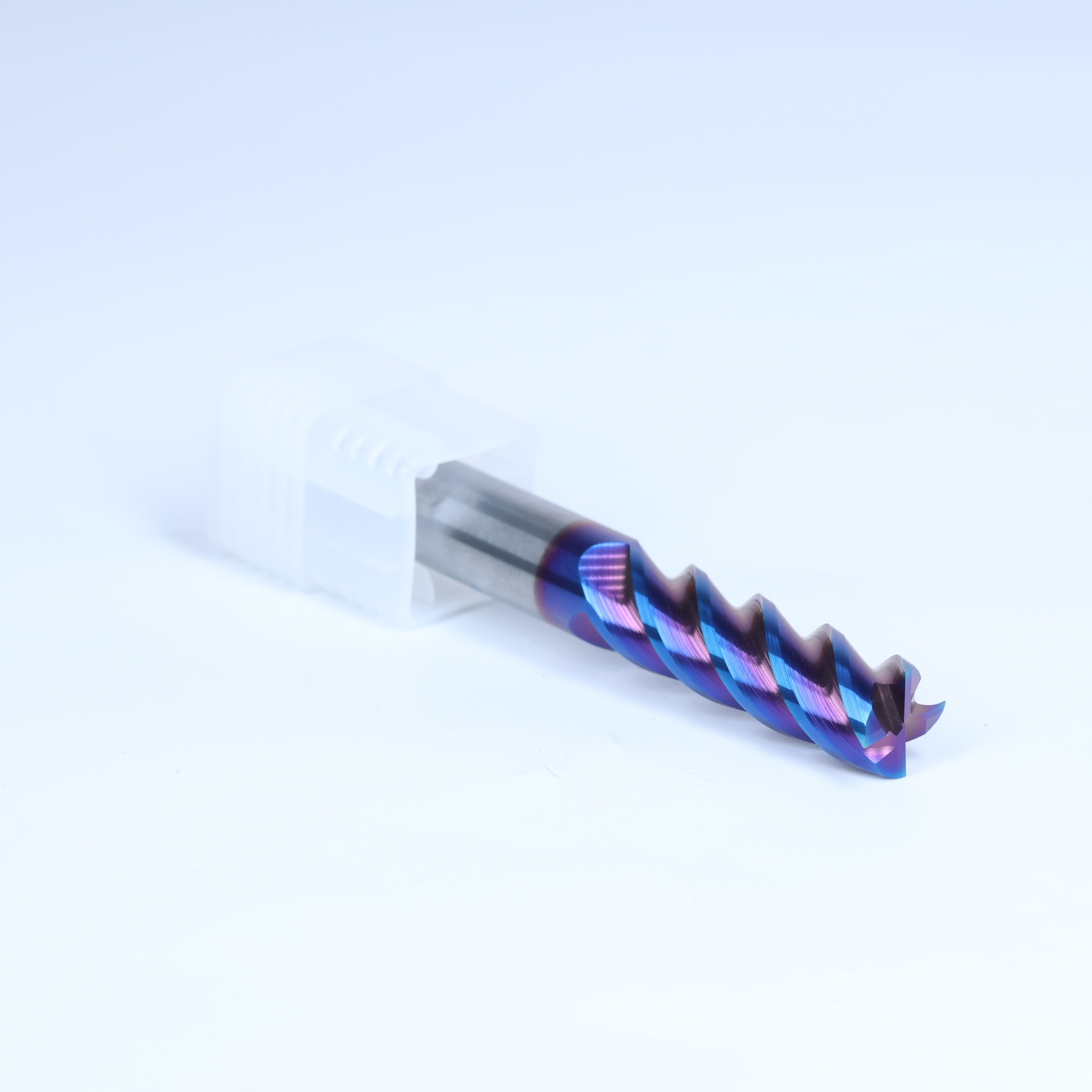

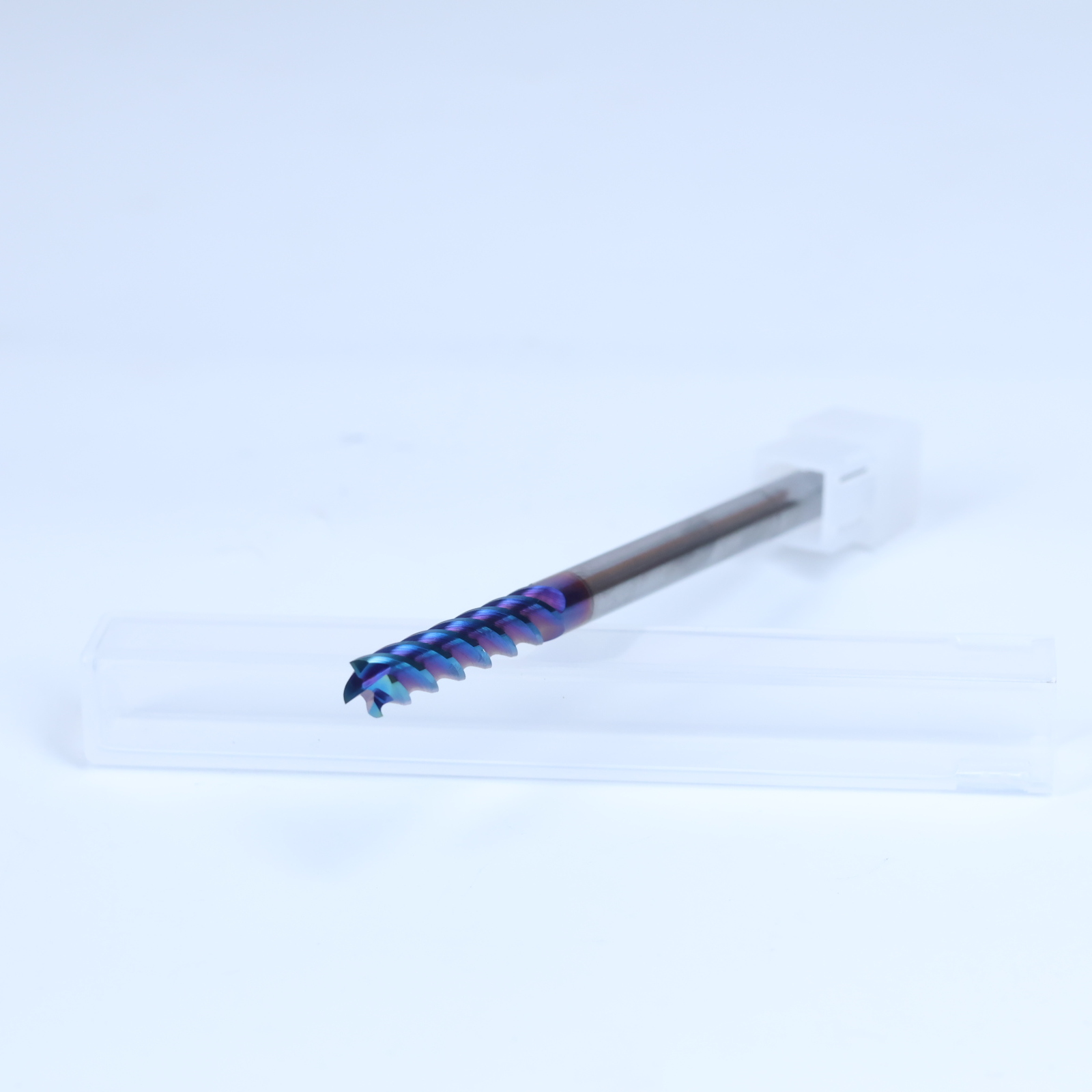

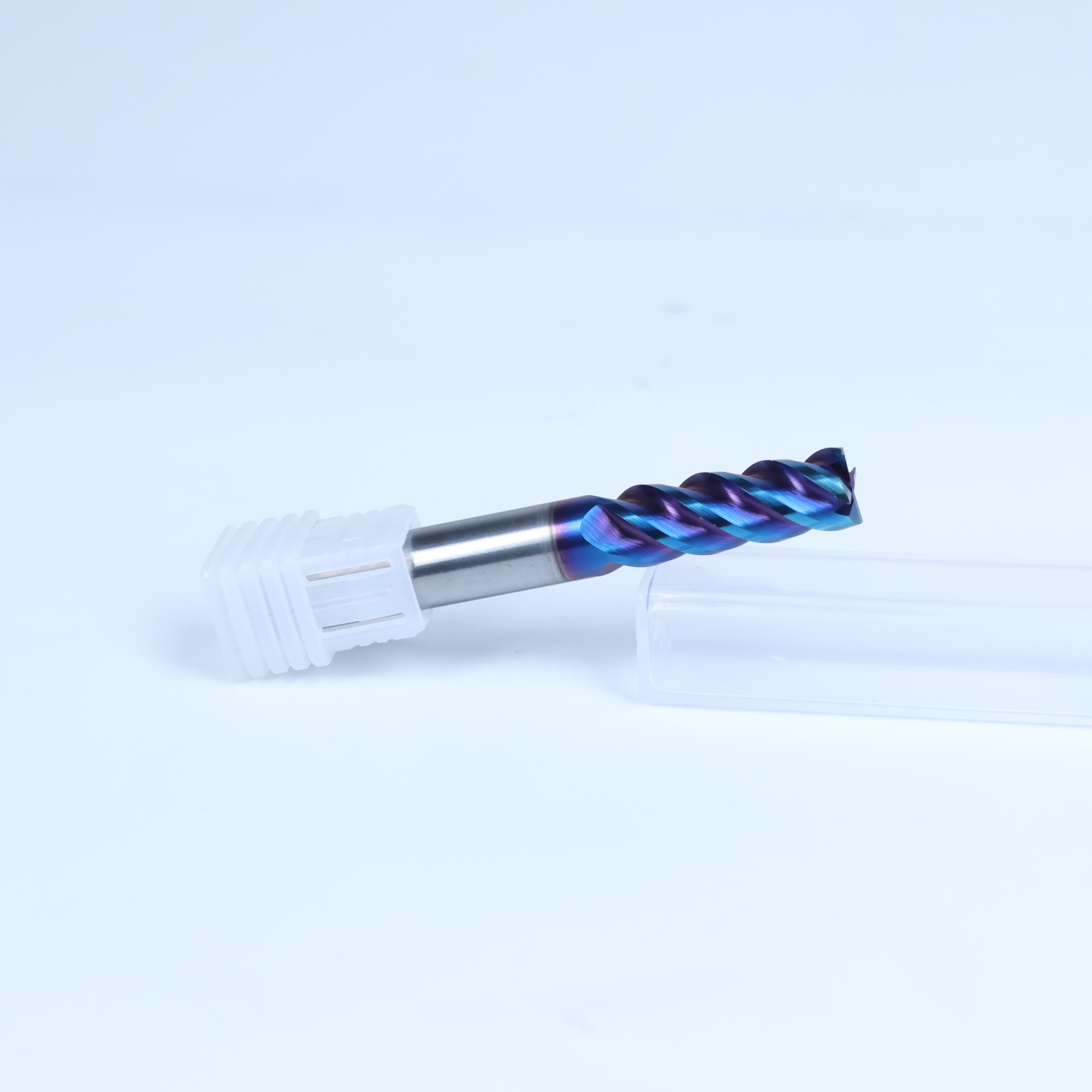

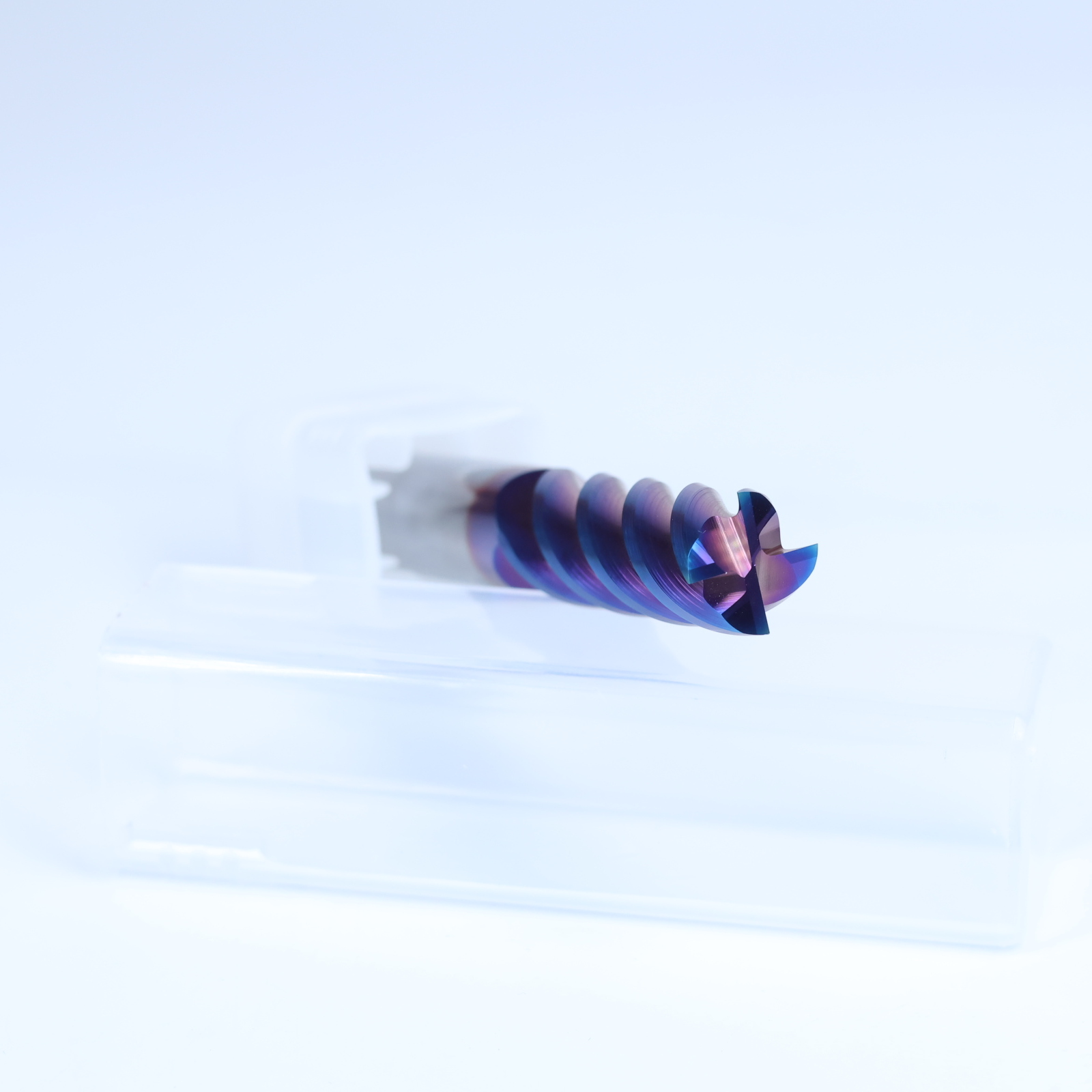

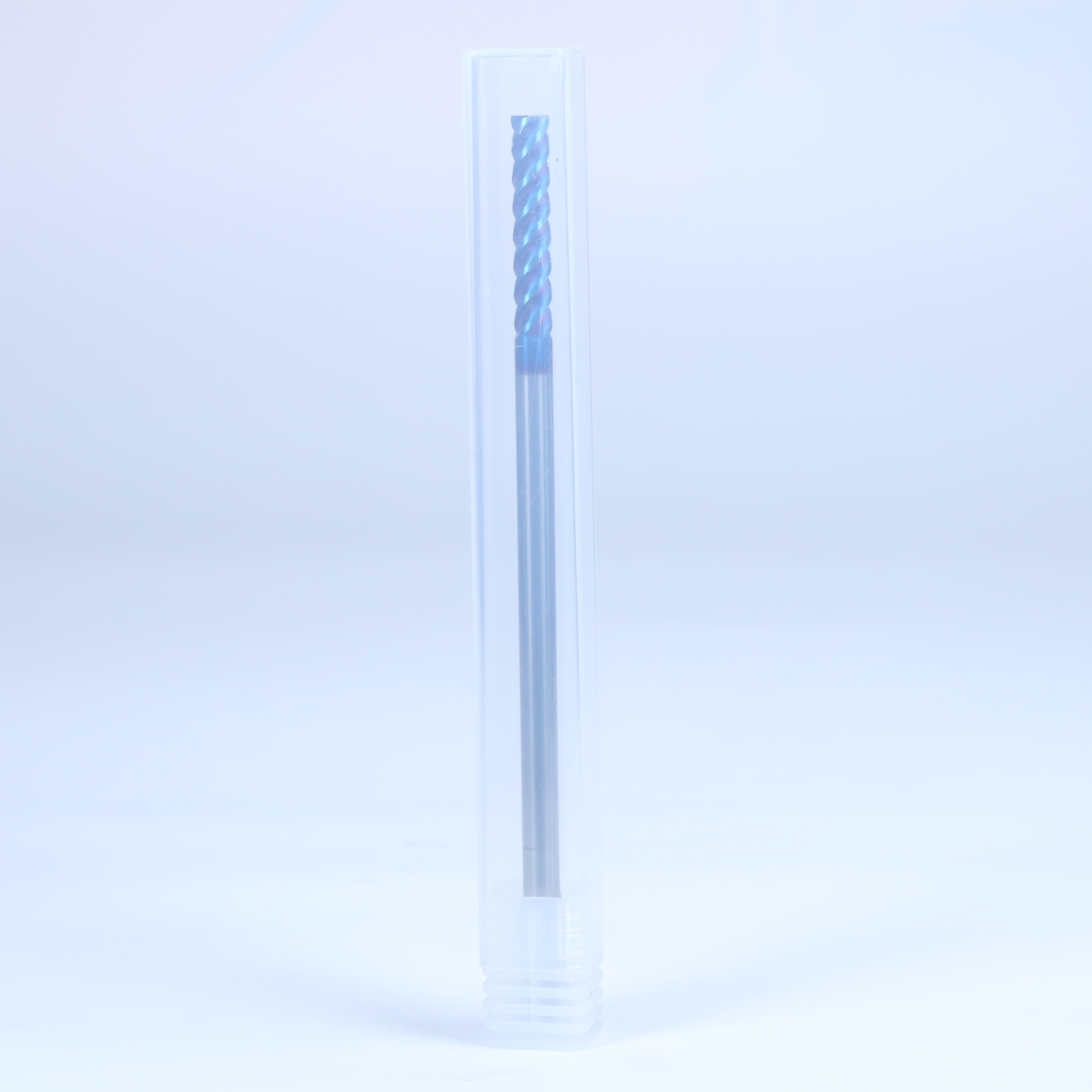

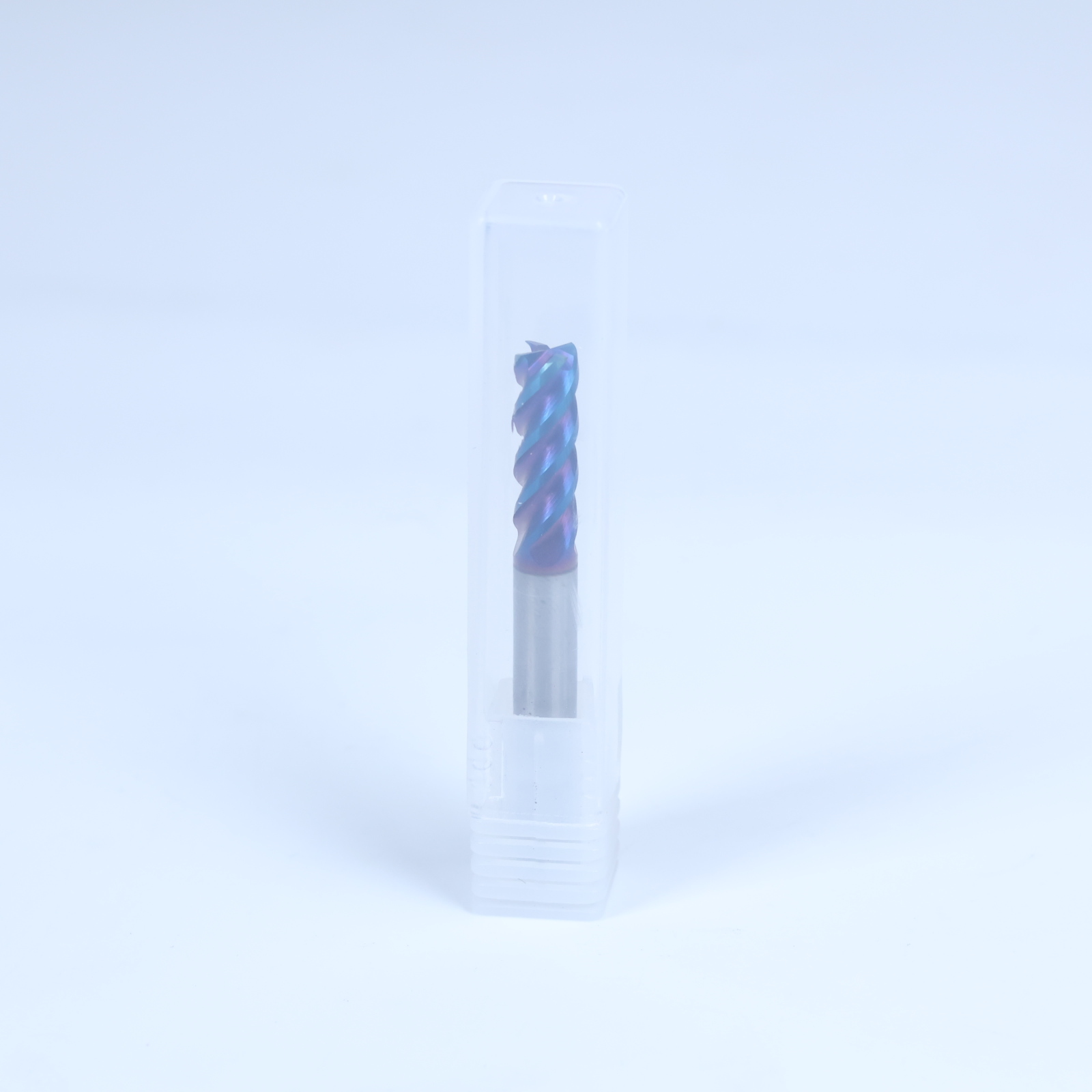

HRC65 4-flute flat milling cutter blue coating
HRC65 4-flute flat milling cutter blue coating
HRC65 4-flute flat milling cutter blue coating
HRC65 4-flute flat milling cutter blue coating
HRC65 4-flute flat milling cutter blue coating
Feature Description
1.Large chip capacity, it can be widely used in groove and cavity processing of carbon steel and alloy steel.
2.Universal 2-edge ball end milling cutter can be widely used in profiling machining.
3.the special cuting edge design can realize the high-eficiency finishing and sem tnishing ofthe side wal of the wokpiece with hardhess below hrc52.
4.Arc design of knife tip, good anti-collapse performance.
